AX5DBF1-212.5000C - ABRACON

Description: 212.5 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 8-SMD, No Lead

Download AX5DBF1-212.5000C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

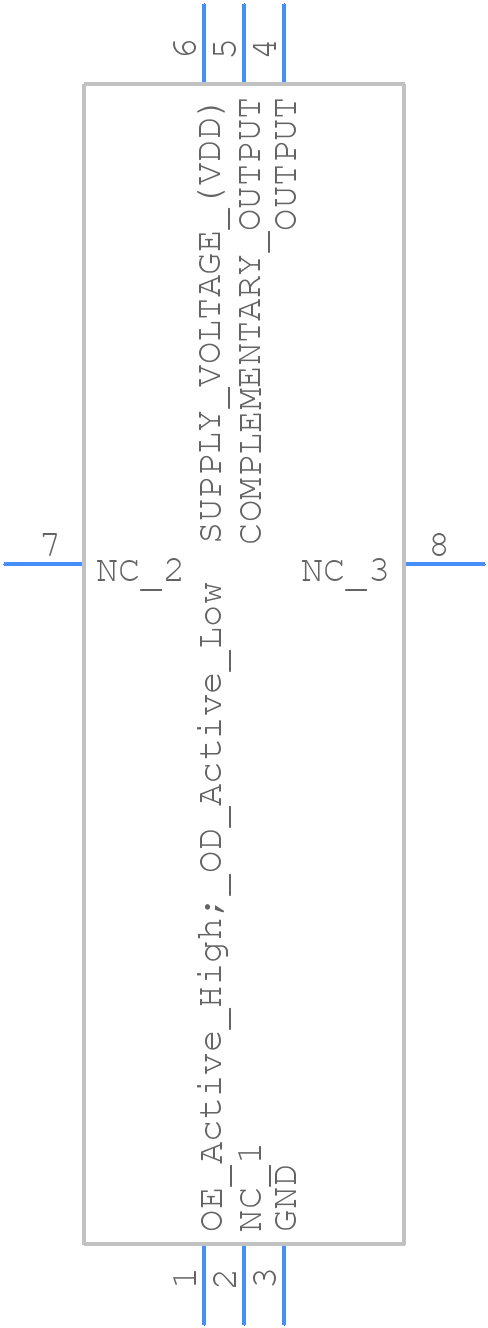

Symbol
AX5DBF1-212.5000C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX5DBF1-212.5000C - ABRACON PCB footprint - Other - Other - AX5
click to zoom
3D Models
AX5DBF1-212.5000C - ABRACON - 3D model - Other - AX5
click to zoom

AX5DBF1-212.5000C Details

  • Manufacturer Part Number:

    AX5DBF1-212.5000C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    212.5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    5.0mm x 3.2mm x 1.4mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX5DBF1-212.5000C Frequently Asked Questions (FAQs)

  • The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the AX5DBF1-212.5000C is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application and ensure the oscillator can operate within the desired temperature range. Consult with Abracon Corporation or a qualified engineer for customized solutions.
  • Use a 0.01 μF to 0.1 μF ceramic capacitor in parallel with a 10 μF to 22 μF electrolytic capacitor to decouple the power supply. Place the capacitors as close to the oscillator as possible to minimize noise and ensure stable operation.
  • The maximum allowable voltage tolerance is ±5% of the nominal supply voltage (1.8V to 3.3V) to ensure proper oscillator operation and minimize frequency deviation.
  • Yes, but ensure proper isolation and level shifting between power domains to prevent noise and signal degradation. Consult with Abracon Corporation or a qualified engineer for customized solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX5DBF1-212.5000C Overview

Use the download button to access the AX5DBF1-212.5000C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX5DB, or try a keyword search, such as XO
