AX5DBF1-622.0800C footprint, schematic symbol and 3D model by ABRACON

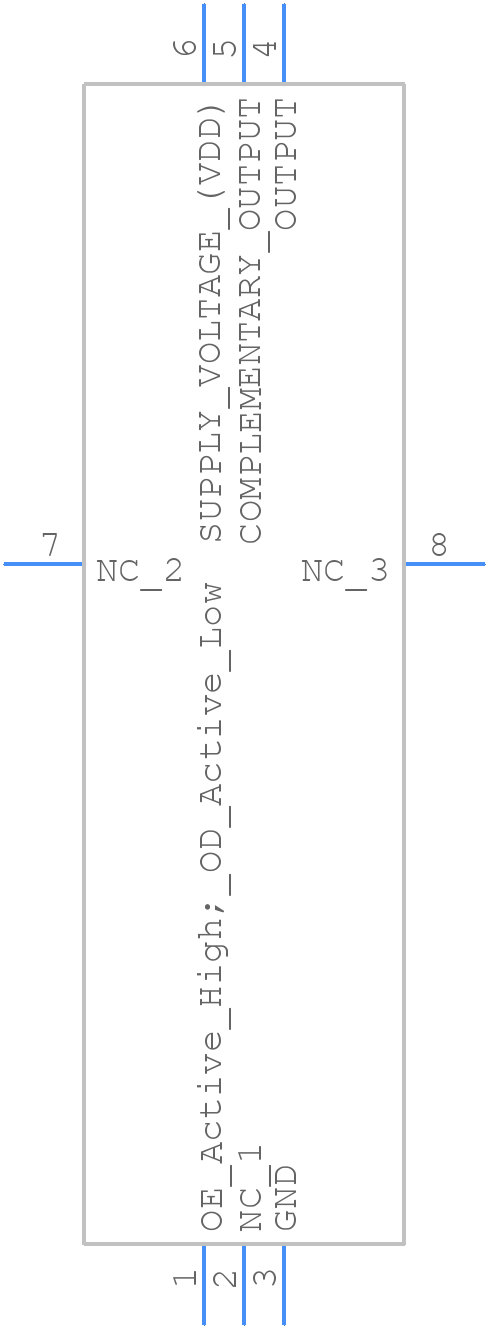

Symbol

PCB Footprints

3D Models

AX5DBF1-622.0800C Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
Yes, the AX5DBF1-622.0800C is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable performance in high-temperature environments.
The start-up time of the AX5DBF1-622.0800C can be influenced by the power supply ramp-up time, decoupling capacitors, and PCB layout. Ensure a clean power supply, use recommended decoupling capacitors, and optimize the PCB layout to minimize parasitic inductance and capacitance.
Abracon recommends a drive level of 1-10mA to ensure reliable operation and minimize power consumption. Higher drive levels may be used, but this may reduce the oscillator's lifespan and increase power consumption.
Yes, the AX5DBF1-622.0800C can be used in a redundant or backup oscillator configuration to ensure system reliability and availability. However, it's essential to consider the system's specific requirements and ensure proper synchronization and switchover mechanisms are in place.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AX5DBF1-622.0800C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AX5DB, or try a keyword search, such as XO
