AX5DCF2-500.0000T - ABRACON

Description: OSC XO 500MHZ 1.8V LVDS

Download AX5DCF2-500.0000T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

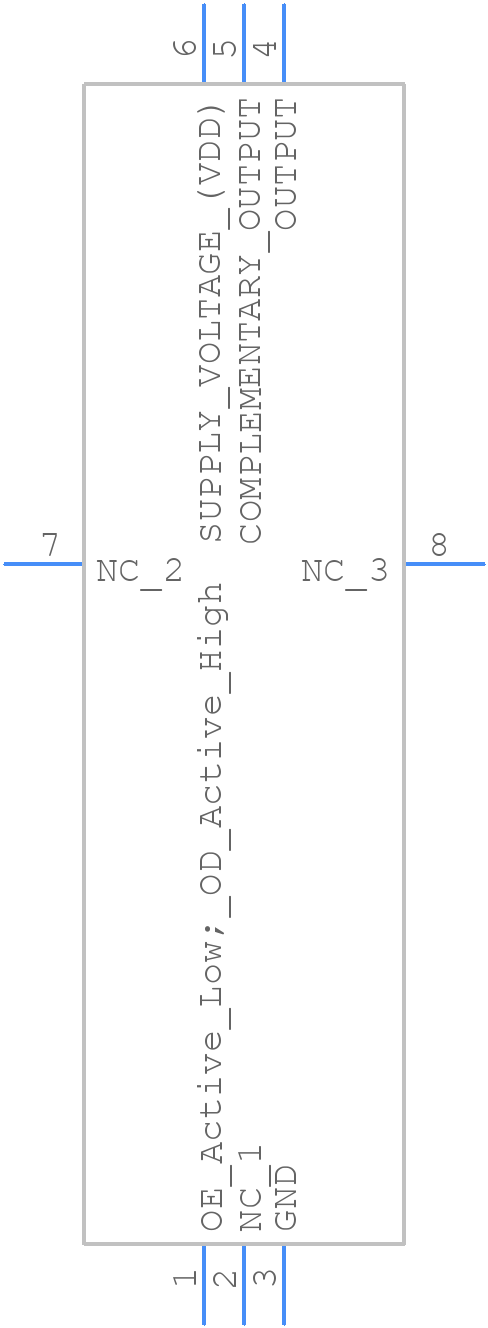

Symbol
AX5DCF2-500.0000T - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX5DCF2-500.0000T - ABRACON PCB footprint - Other - Other - AX5
click to zoom
3D Models
AX5DCF2-500.0000T - ABRACON - 3D model - Other - AX5
click to zoom

AX5DCF2-500.0000T Details

  • Manufacturer Part Number:

    AX5DCF2-500.0000T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    5.0mm x 3.2mm x 1.4mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX5DCF2-500.0000T Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • Yes, the AX5DCF2-500.0000T is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable performance in high-temperature environments.
  • The typical frequency tolerance for the AX5DCF2-500.0000T is ±20 ppm over the operating temperature range, but it's essential to check the specific tolerance for your application with Abracon or the datasheet.
  • Yes, the AX5DCF2-500.0000T is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
  • Abracon recommends storing the AX5DCF2-500.0000T in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of -40°C to 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX5DCF2-500.0000T Overview

Use the download button to access the AX5DCF2-500.0000T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX5DC, or try a keyword search, such as XO
