AX5HCF1-322.265625C - ABRACON

Description: MEMS Crystal Oscillator 12.5MHz ±50ppm 4-Pin SMD T/R

Download AX5HCF1-322.265625C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

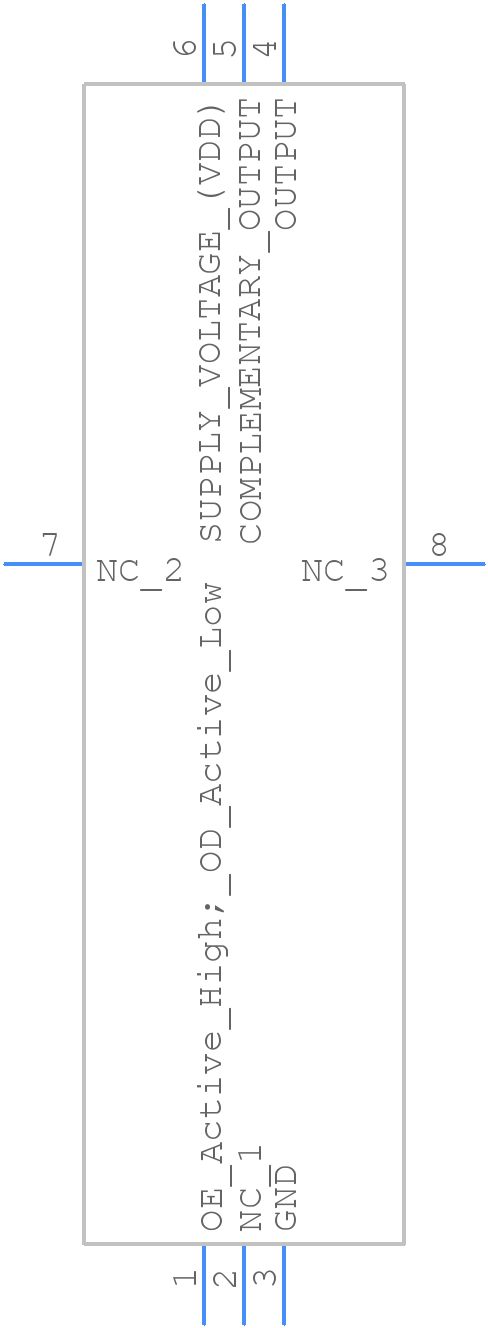

Symbol
AX5HCF1-322.265625C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX5HCF1-322.265625C - ABRACON PCB footprint - Other - Other - AX5
click to zoom
3D Models
AX5HCF1-322.265625C - ABRACON - 3D model - Other - AX5
click to zoom

AX5HCF1-322.265625C Details

  • Manufacturer Part Number:

    AX5HCF1-322.265625C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    322.265625 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCSL

  • Output Load:

    50 OHM

  • Physical Dimension:

    5.0mm x 3.2mm x 1.4mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX5HCF1-322.265625C Frequently Asked Questions (FAQs)

  • Abracon recommends following the PCB layout guidelines provided in the application note AN-04, which includes recommendations for pad size, spacing, and layer stack-up to minimize noise and ensure optimal performance.
  • The AX5HCF1-322.265625C is designed to minimize EMI and RFI through its shielded can and internal filtering. However, additional EMI filtering may be required depending on the specific application and environment.
  • The AX5HCF1-322.265625C operates over a temperature range of -40°C to +85°C, with a storage temperature range of -55°C to +125°C.
  • Yes, the AX5HCF1-322.265625C is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204, Condition D.
  • Lead time and availability may vary depending on the region and distributor. It's recommended to check with authorized distributors or Abracon's website for the most up-to-date information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX5HCF1-322.265625C Overview

Use the download button to access the AX5HCF1-322.265625C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX5HC, or try a keyword search, such as XO
