AX7DBF3-100.0000C footprint, schematic symbol and 3D model by ABRACON

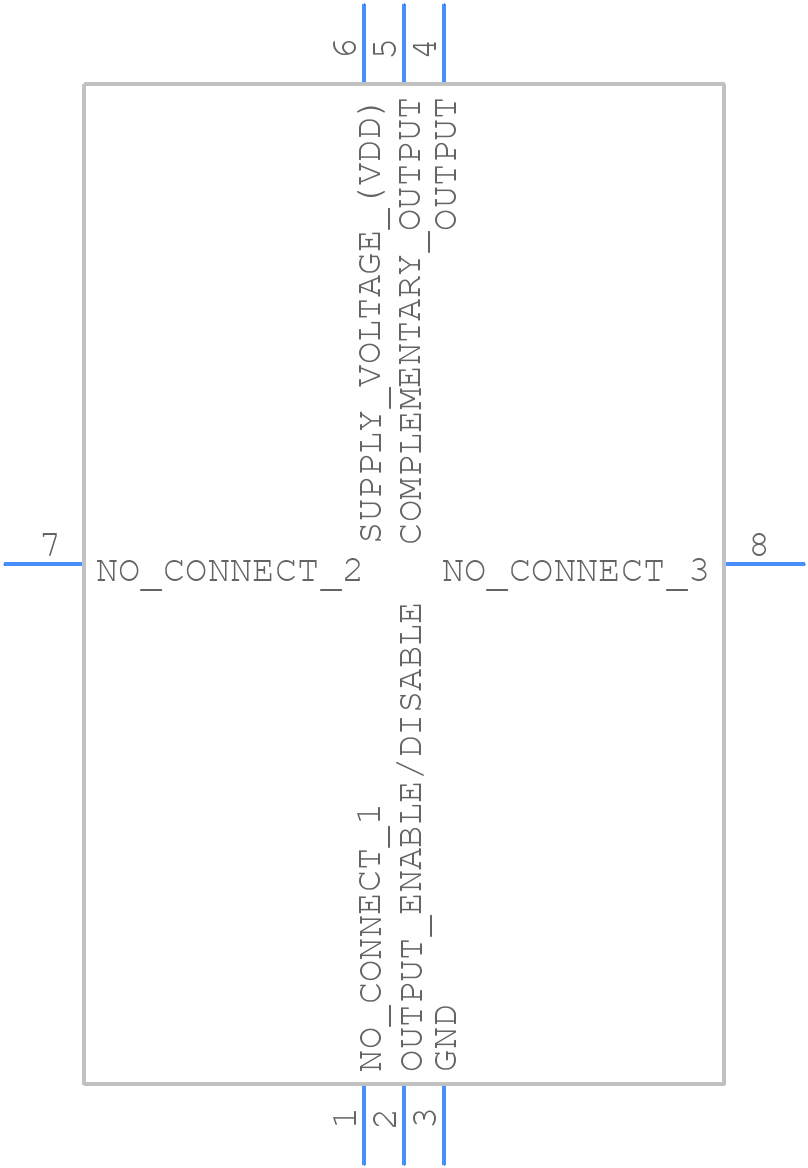

Symbol

PCB Footprints

3D Models

AX7DBF3-100.0000C Details

Abracon provides a recommended PCB land pattern in their application note AN-04, which can be found on their website. The land pattern is also available in various CAD formats, including Gerber and Eagle.
The AX7DBF3-100.0000C is rated for operation up to 125°C, but it's recommended to derate the frequency and voltage according to the temperature derating curve provided in the datasheet. Additionally, it's essential to ensure that the PCB and surrounding components can also withstand the high temperature.
Abracon recommends handling the device by the package body only, avoiding touching the pins or the quartz crystal. During rework, it's essential to use a hot air rework station with a temperature-controlled nozzle to prevent damage to the device.
The lead time and minimum order quantity for the AX7DBF3-100.0000C vary depending on the region and distributor. It's recommended to check with authorized distributors such as Digi-Key, Mouser, or Avnet for the most up-to-date information.
Yes, the AX7DBF3-100.0000C is RoHS and REACH compliant, and Abracon provides a Declaration of Conformity and a Material Declaration on their website.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AX7DBF3-100.0000C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AX7DB, or try a keyword search, such as XO
