AX7DBF3-148.5000C - ABRACON

Description: 148.5 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 8-SMD, No Lead

Download AX7DBF3-148.5000C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

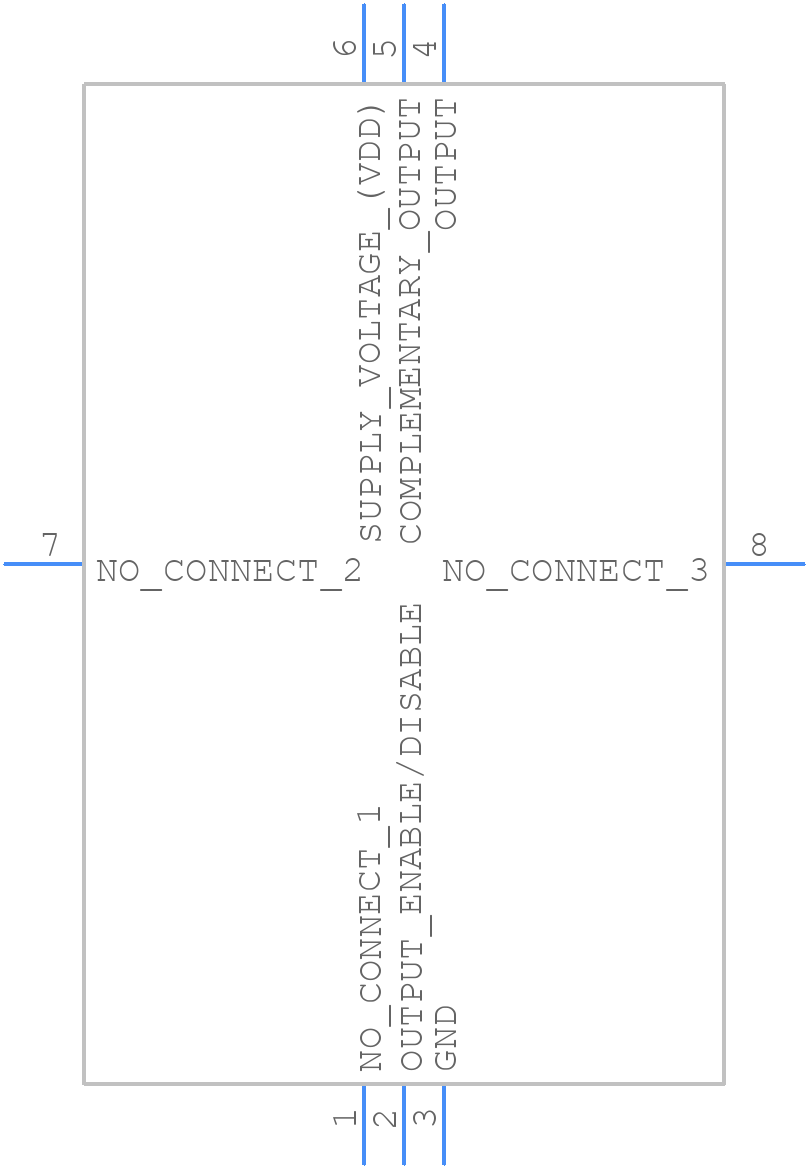

AX7DBF3-148.5000C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX7DBF3-148.5000C - ABRACON PCB footprint - Other - Other - AX7
click to zoom
3D Models
AX7DBF3-148.5000C - ABRACON - 3D model - Other - AX7
click to zoom

AX7DBF3-148.5000C Details

  • Manufacturer Part Number:

    AX7DBF3-148.5000C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    148.5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX7DBF3-148.5000C Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • Yes, the AX7DBF3-148.5000C is rated for operation up to 125°C, but it's essential to follow the recommended derating guidelines to ensure reliable performance and prevent damage.
  • Abracon recommends using a soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds to ensure reliable soldering. Additionally, ensure the PCB is clean and free of oxidation to promote good solder wetting.
  • The typical lead time for the AX7DBF3-148.5000C is 8-12 weeks, but this may vary depending on the quantity and availability. It's recommended to check with Abracon or an authorized distributor for the most up-to-date lead time information.
  • Yes, the AX7DBF3-148.5000C is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance-free electronics.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX7DBF3-148.5000C Overview

Use the download button to access the AX7DBF3-148.5000C schematic symbol, PCB footprint, and 3D model.
