AX7DBF3-156.2500C - ABRACON

Description: 156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 8-SMD, No Lead

Download AX7DBF3-156.2500C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

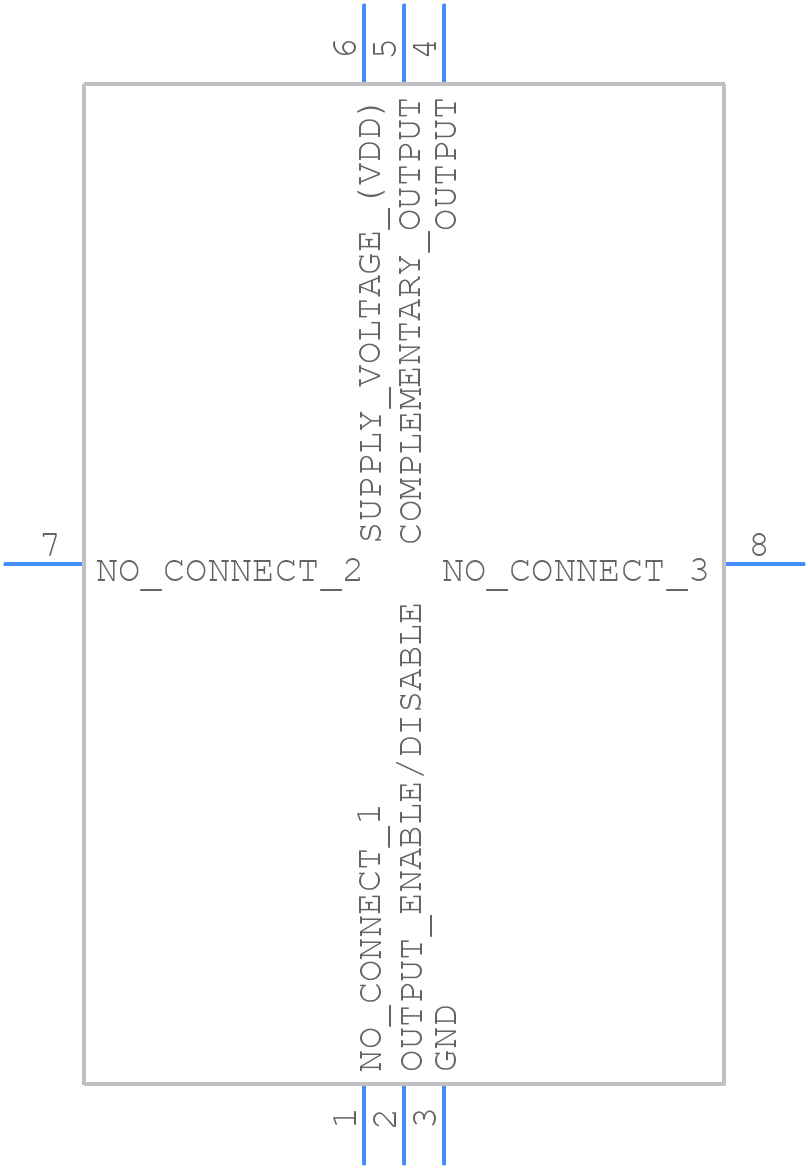

AX7DBF3-156.2500C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX7DBF3-156.2500C - ABRACON PCB footprint - Other - Other - AX7
click to zoom
3D Models
AX7DBF3-156.2500C - ABRACON - 3D model - Other - AX7
click to zoom

AX7DBF3-156.2500C Details

  • Manufacturer Part Number:

    AX7DBF3-156.2500C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    156.25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Equivalence Code:

    LCC8,.2X.28,100/83

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX7DBF3-156.2500C Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
  • The AX7DBF3-156.2500C is rated for operation up to 85°C, but it's recommended to derate the frequency and power handling at higher temperatures. Consult with Abracon's application engineers for specific guidance on high-temperature applications.
  • Follow the recommended soldering profile and handling procedures outlined in the datasheet. Ensure the component is properly aligned and seated on the PCB, and use a soldering iron with a temperature range of 250-260°C to prevent damage to the component.
  • Lead times and MOQs may vary depending on the region and availability. Contact Abracon's sales team or authorized distributors for the most up-to-date information on lead times and MOQs.
  • Yes, the AX7DBF3-156.2500C is RoHS and REACH compliant, and Abracon provides documentation and certification to support compliance with these regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX7DBF3-156.2500C Overview

Use the download button to access the AX7DBF3-156.2500C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX7DB, or try a keyword search, such as XO
