AX7DBF4-945.0000T footprint, schematic symbol and 3D model by ABRACON

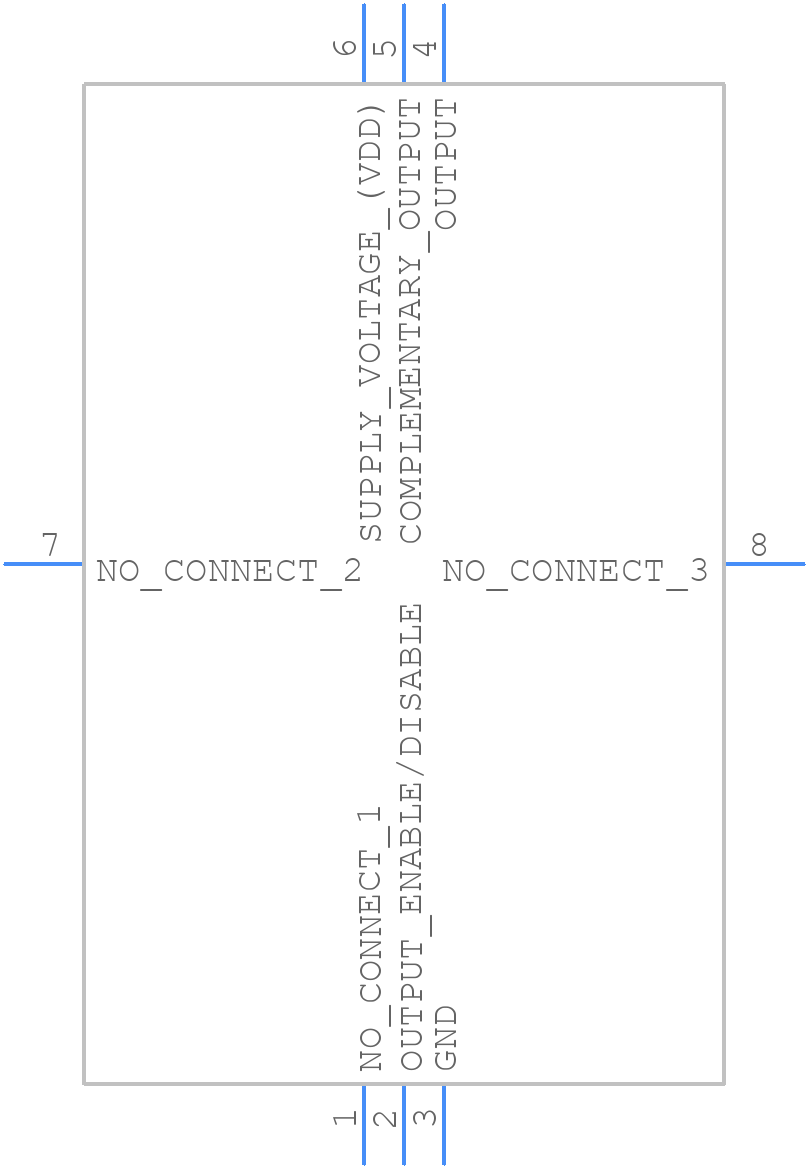

Symbol

PCB Footprints

3D Models

AX7DBF4-945.0000T Details

Abracon recommends following the IPC-7351B standard for PCB land patterns. The recommended land pattern for the AX7DBF4-945.0000T can be found in the Abracon Application Note AN-04.
To ensure the oscillator starts up correctly, make sure to follow the recommended power-up sequence, provide a stable power supply, and ensure the oscillator input pin is properly terminated. Additionally, Abracon recommends adding a 10nF to 100nF capacitor between the VDD and GND pins to filter out noise.
The AX7DBF4-945.0000T has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the frequency stability and aging characteristics above 70°C.
The AX7DBF4-945.0000T is not hermetically sealed and is not recommended for use in harsh environments with high humidity. Abracon recommends using a conformal coating or potting the device to protect it from moisture.
Abracon recommends storing the AX7DBF4-945.0000T in a dry, cool place with a relative humidity of 50% or less. The storage temperature should be between -20°C to +40°C.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AX7DBF4-945.0000T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AX7DB, or try a keyword search, such as XO
