AX7PAF3-100.0000C - ABRACON

Description: 100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 8-SMD, No Lead

Download AX7PAF3-100.0000C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

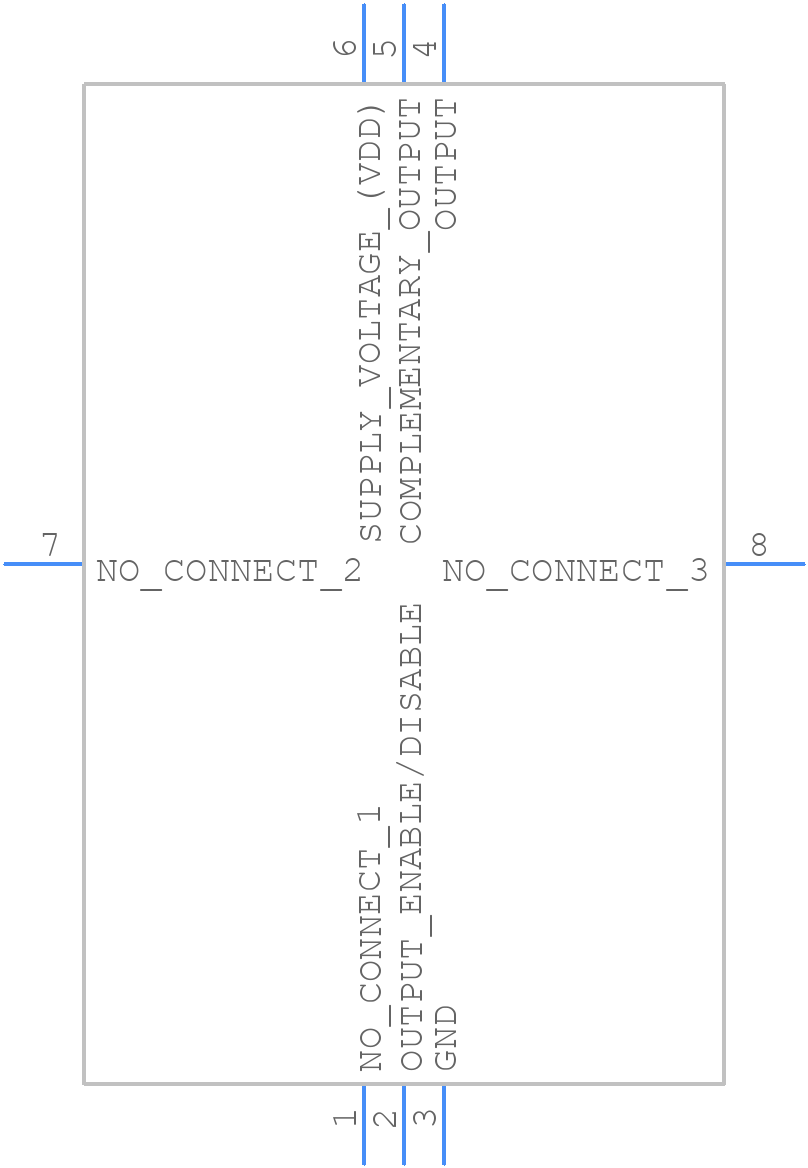

Symbol
AX7PAF3-100.0000C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX7PAF3-100.0000C - ABRACON PCB footprint - Other - Other - AX7
click to zoom
3D Models
AX7PAF3-100.0000C - ABRACON - 3D model - Other - AX7
click to zoom

AX7PAF3-100.0000C Details

  • Manufacturer Part Number:

    AX7PAF3-100.0000C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Output Load:

    50 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX7PAF3-100.0000C Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the AX7PAF3-100.0000C is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the AX7PAF3-100.0000C is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application and environmental conditions. Abracon recommends consulting with their technical support team for customized guidance on using the oscillator in extreme temperatures.
  • To ensure proper soldering, follow the recommended reflow soldering profile and handling guidelines provided in the Abracon datasheet. Additionally, use a soldering iron with a fine tip and a temperature-controlled soldering station to minimize thermal stress on the component.
  • The typical lead time for the AX7PAF3-100.0000C oscillator can vary depending on the quantity, packaging, and shipping location. It's recommended to check with Abracon's authorized distributors or their customer support team for the most up-to-date lead time information.
  • Yes, the AX7PAF3-100.0000C oscillator is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX7PAF3-100.0000C Overview

Use the download button to access the AX7PAF3-100.0000C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX7PA, or try a keyword search, such as XO
