AX7PBF3-312.5000C footprint, schematic symbol and 3D model by ABRACON

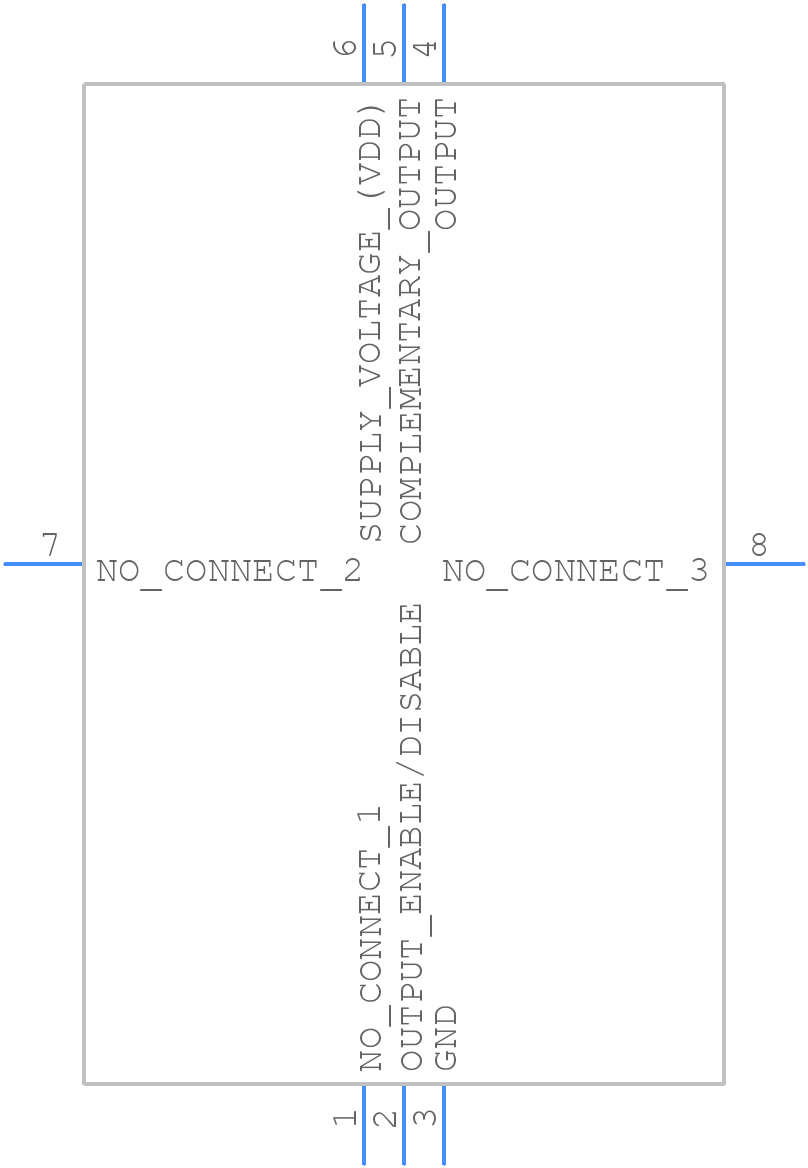

Symbol

PCB Footprints

3D Models

AX7PBF3-312.5000C Details

Abracon provides a recommended PCB land pattern in their application note AN-03, which can be found on their website. The recommended land pattern ensures proper soldering and thermal management.
Yes, the AX7PBF3-312.5000C is designed to withstand high-vibration environments. Abracon's oscillators are tested to meet the requirements of MIL-STD-202, Method 204, Condition D, which includes vibration testing.
The lead time for the AX7PBF3-312.5000C can vary depending on the quantity and availability. Typically, Abracon's lead time is 4-6 weeks for standard products. However, it's best to check with Abracon's sales team or authorized distributors for the most up-to-date lead time information.
Yes, the AX7PBF3-312.5000C is RoHS and REACH compliant. Abracon ensures that all their products meet the requirements of the European Union's RoHS and REACH directives.
The operating temperature range for the AX7PBF3-312.5000C is -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may be affected at extreme temperatures.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AX7PBF3-312.5000C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AX7PB, or try a keyword search, such as XO
