AX88796ALF - ASIX

Description: Ic 10/100Base Ethernet Control Ax88796Alf Lqfp-128

Download AX88796ALF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

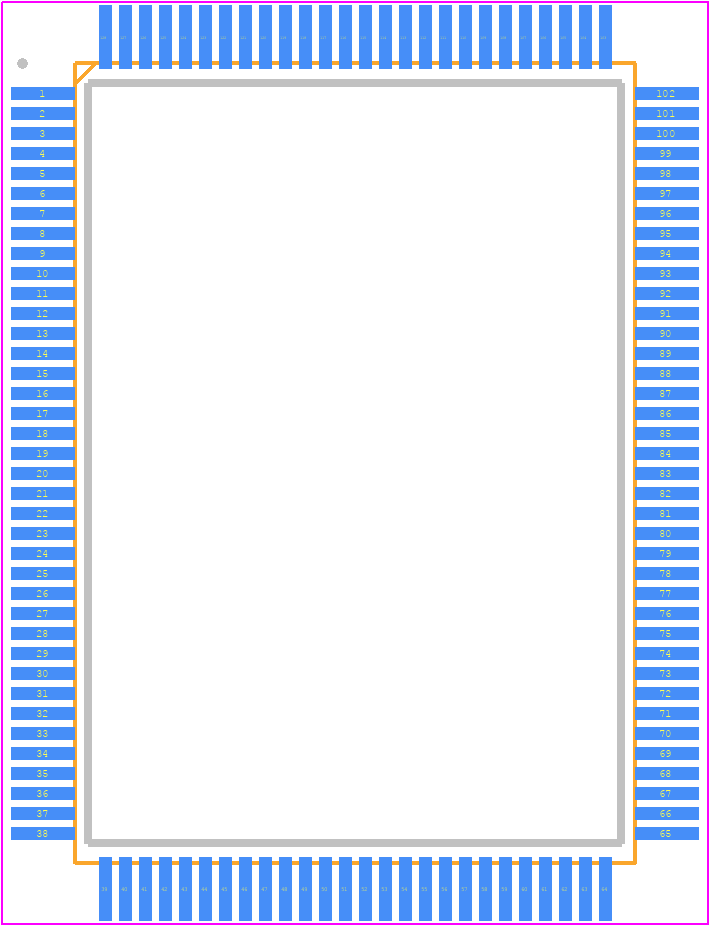

AX88796ALF - ASIX PCB footprint - Quad Flat Packages - Quad Flat Packages - AX88796ALF
click to zoom
3D Models
AX88796ALF - ASIX  - 3D model - Quad Flat Packages - AX88796ALF
click to zoom

AX88796ALF Details

  • Manufacturer Part Number:

    AX88796ALF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    GREEN, PLASTIC, LQFP-128

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    ASIX Electronics Corporation

  • Address Bus Width:

    10

  • Boundary Scan:

    NO

  • Bus Compatibility:

    ISA; MCS-51; 80186

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    SYNC, BIT, BYTE, ETHERNET

  • Data Encoding/Decoding Method:

    BIPH-LEVEL(MANCHESTER)

  • Data Transfer Rate-Max:

    12.5 MBps

  • External Data Bus Width:

    16

  • JESD-30 Code:

    R-PQFP-G128

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    75 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

AX88796ALF Frequently Asked Questions (FAQs)

  • ASIX provides a recommended PCB layout guideline in their application note AN002, which includes layout considerations for the chip, decoupling capacitors, and signal traces.
  • The AX88796ALF can be configured for half-duplex or full-duplex operation through the DUPLEX pin. Tying the DUPLEX pin to VCC or GND sets the device to full-duplex or half-duplex mode, respectively.
  • The AX88796ALF supports cable lengths up to 100 meters, as specified in the IEEE 802.3u standard for Fast Ethernet.
  • The AX88796ALF has a built-in power-down mode that can be controlled through the PWON pin. Additionally, the device can be put into a low-power state by asserting the PDN pin.
  • The recommended crystal oscillator frequency for the AX88796ALF is 25 MHz, which is used to generate the internal clock signals.
