Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 70%. Avoid storing in areas with high electromagnetic interference.
Use an anti-static wrist strap, mat, or workstation. Handle the component by the body or pins, avoiding direct contact with the leads. Use ESD-protective packaging and follow proper grounding procedures.
Use a soldering iron with a temperature range of 200°C to 250°C. Apply solder for 2-3 seconds, with a maximum of 5 seconds. Avoid applying excessive force or pressure during soldering.
Yes, but ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Avoid exposing the component to excessive vibration, which may cause mechanical stress or damage.
Use a soft, dry brush to remove any debris. For more thorough cleaning, use a mild solvent like isopropyl alcohol or a specialized electronics cleaning solution. Avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE510124 Overview

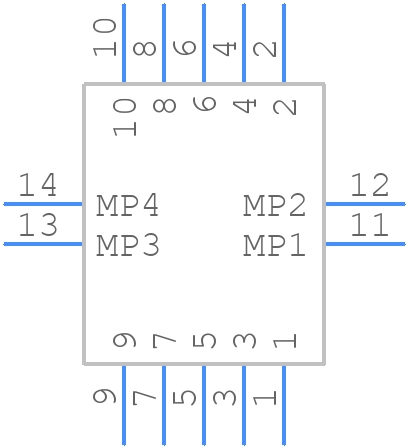

Use the download button to access the AXE510124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE51,
or try a keyword search, such as Headers and Edge Type Connectors
