A good PCB layout for the AXE544127 should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, ensure that the PCB material has a low dielectric constant to minimize signal reflections.
The AXE544127 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the underside of the package. You can also use thermal interface materials to improve heat transfer.
The recommended power-up sequence for the AXE544127 is to apply the power supply voltage (VCC) before the input signal. This ensures that the internal biasing circuitry is established before the input signal is applied, which helps prevent damage to the device.
To troubleshoot issues with the AXE544127 not switching properly, check the following: ensure the input signal is within the specified voltage range, verify the power supply voltage is stable and within the recommended range, and check for any signal reflections or ringing on the input and output lines.
Yes, the AXE544127 is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, handle the device by the package body only, and avoid touching the pins or leads. Also, ensure that the PCB and assembly equipment are ESD-compliant.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE544127 Overview

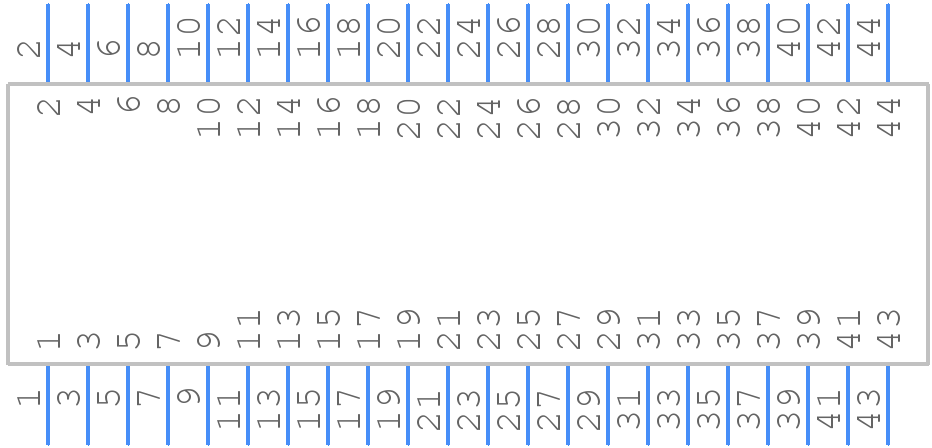

Use the download button to access the AXE544127 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE54,
or try a keyword search, such as Headers and Edge Type Connectors
