A good PCB layout for the AXF461500 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines, provide adequate heat dissipation, and consider using a heat sink or thermal interface material. Additionally, ensure that the device is operated within the specified temperature range.
To prevent ESD damage, handle the AXF461500 in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and use ESD-safe packaging and storage materials. Avoid touching the device's pins or leads, and use an anti-static bag or wrap when storing or shipping the device.
The AXF461500 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use a vibration-dampening material, such as a silicone-based adhesive, to secure the device to the PCB. Additionally, ensure that the PCB is properly secured to the chassis or enclosure.
The recommended soldering conditions for the AXF461500 include a peak temperature of 260°C, a soldering time of 3 seconds or less, and a soldering iron temperature of 350°C. It's also essential to use a solder with a melting point above 217°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF461500 Overview

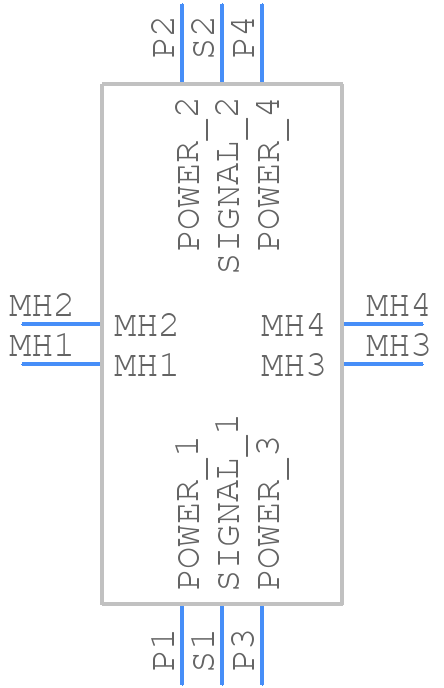

Use the download button to access the AXF461500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXF46,
or try a keyword search, such as Headers and Edge Type Connectors
