A good PCB layout for AXF6A2412 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the device operates within the specified temperature range, provide adequate heat dissipation, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or operation.
A ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the device as possible and should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
Yes, the AXF6A2412 is designed to withstand vibrations up to 10G. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent damage or malfunction.
To troubleshoot issues with the AXF6A2412, check the input voltage, output load, and PCB layout. Verify that the device is operated within the specified temperature range and that the input capacitor is properly sized and placed. Use an oscilloscope to monitor the output voltage and current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF6A2412 Overview

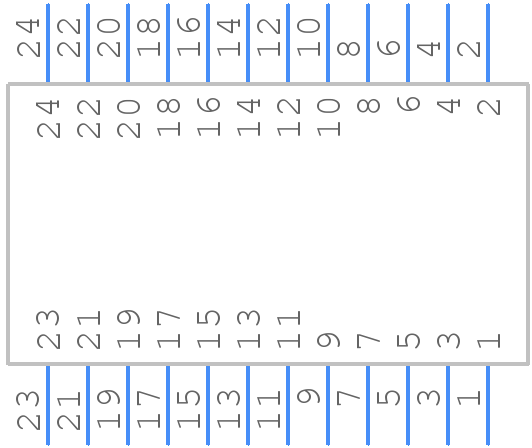

Use the download button to access the AXF6A2412 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXF6A,
or try a keyword search, such as Headers and Edge Type Connectors
