Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-humidity environments, Panasonic recommends conformal coating, sealing, or potting the device. Additionally, the device should be stored in a dry environment with a relative humidity below 60%.
Although the datasheet specifies the recommended operating voltage range, the maximum allowable voltage for the input pins is typically 1.5V to 2.5V above the recommended voltage range, but this should be confirmed with Panasonic's application engineers or through further testing.
Yes, the AXF6D4412 can be used in battery-powered devices. However, it's essential to consider the device's power consumption, battery life, and power management strategies to ensure efficient operation.
To troubleshoot I2C interface issues, check the clock frequency, signal integrity, and bus capacitance. Ensure that the I2C bus is properly terminated, and the device is properly addressed. Use an oscilloscope or logic analyzer to debug the I2C signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF6D4412 Overview

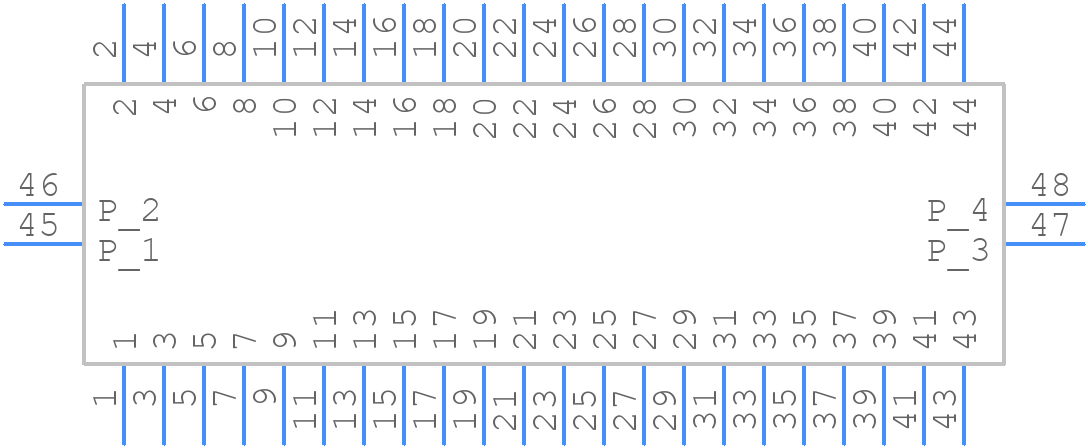

Use the download button to access the AXF6D4412 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXF6D,
or try a keyword search, such as Headers and Edge Type Connectors
