Panasonic recommends following the recommended land pattern and PCB layout guidelines provided in the application notes or evaluation boards for the AXF6G3012. This ensures optimal thermal performance, signal integrity, and minimizes parasitic effects.
Proper thermal management is crucial for the AXF6G3012. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interface materials to keep the junction temperature below the recommended 125°C. Consult the thermal resistance and power dissipation ratings in the datasheet for guidance.
The AXF6G3012 has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. Use anti-static wrist straps, mats, and bags, and avoid touching the device's pins or exposed pads.
While the AXF6G3012 is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Consult Panasonic's reliability and environmental testing data, and consider additional mechanical support or vibration damping measures if necessary.
For troubleshooting, start by consulting the datasheet and application notes. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug signal issues. If problems persist, contact Panasonic's technical support or consult with experienced engineers.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF6G3012 Overview

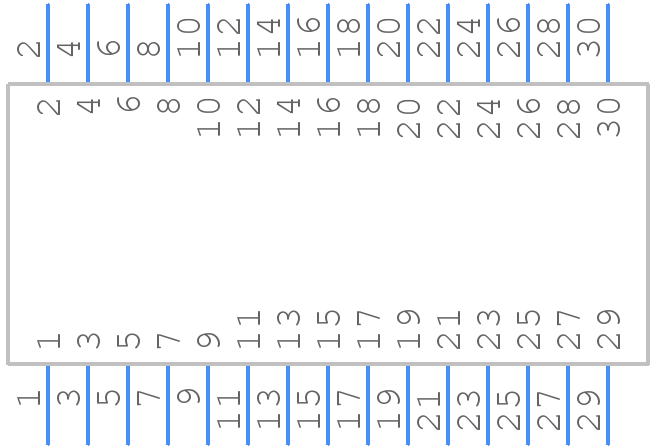

Use the download button to access the AXF6G3012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXF6G,
or try a keyword search, such as Headers and Edge Type Connectors
