Description:High current header P4SP ( 0.4 mm pitch ), Max. 40 m?, Capable of MAX. 5 A for power, Rated current 1 A/pin ( for power ), 0.5 A/pin ( for signal ) , Total: Max. 12 A, 50 Position
A good PCB layout for the AXF6G5012 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The AXF6G5012 requires a stable power supply with a voltage range of 2.7V to 5.5V. Ensure the power supply is decoupled with a 10uF capacitor and a 100nF capacitor in parallel, placed close to the device. Also, ensure the power supply can provide the required current, which is typically around 10mA.
The AXF6G5012 has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
The AXF6G5012 has built-in ESD protection, but it's still recommended to take precautions during handling and assembly. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
The recommended soldering temperature for the AXF6G5012 is 260°C, and the soldering time should not exceed 10 seconds. It's also recommended to use a soldering iron with a temperature control and a solder with a melting point of 220°C to 240°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF6G5012 Overview

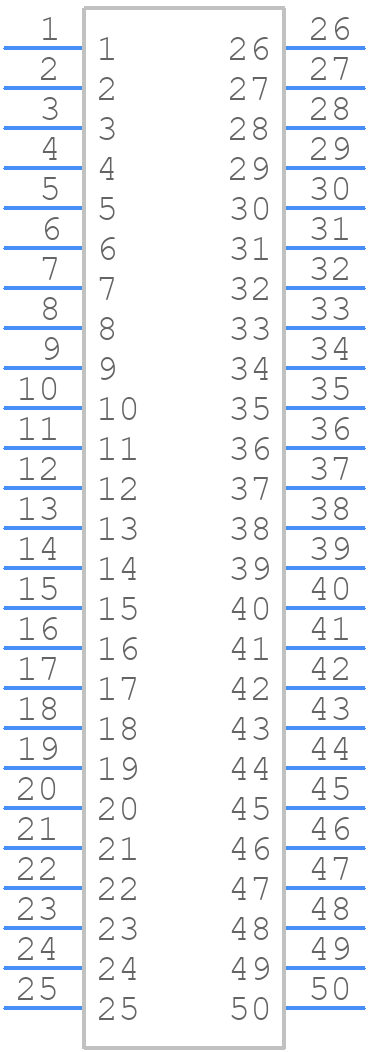

Use the download button to access the AXF6G5012 schematic symbol and PCB footprint.
