Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The AXG812044 has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines. Additionally, consider using thermal interface materials and thermal vias in your PCB design.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with Panasonic or a qualified engineer to determine the optimal operating temperature range for your specific application.
The AXG812044 is designed to withstand certain levels of vibration and shock. However, it's crucial to evaluate the device's performance in your specific application and consider additional mechanical support or design modifications to ensure reliability in harsh environments.
To ensure EMC, follow proper PCB design practices, such as using ground planes, shielding, and filtering. Additionally, consider the device's electromagnetic radiation and susceptibility characteristics, and consult with Panasonic or a qualified engineer to ensure compliance with relevant EMC standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXG812044 Overview

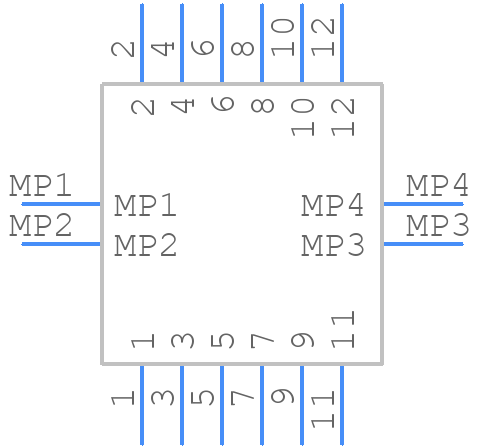

Use the download button to access the AXG812044 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXG81,
or try a keyword search, such as Headers and Edge Type Connectors
