AXK7L30223G - Panasonic

Description: Mezzanine Connector Receptacle 04 mm 2 Rows 30 Contacts Surface Mount Copper

Download AXK7L30223G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

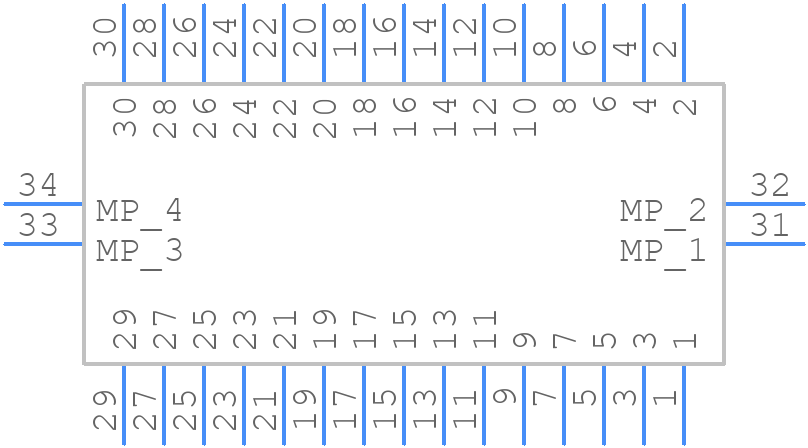

AXK7L30223G - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXK7L30223G - Panasonic PCB footprint - Other - Other - AXK7L30223G-2
click to zoom
3D Models
AXK7L30223G - Panasonic - 3D model - Other - AXK7L30223G-2
click to zoom

AXK7L30223G Details

  • Manufacturer Part Number:

    AXK7L30223G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    NICKEL GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

AXK7L30223G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the AXK7L30223G can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert.
  • Proper thermal management of the AXK7L30223G involves ensuring good airflow, using thermal interface materials, and designing a heat sink or thermal pad to dissipate heat. Consult the datasheet and application notes for specific guidance.
  • The AXK7L30223G is a sensitive electronic component and requires proper ESD protection during handling and assembly. Follow standard ESD handling procedures, use anti-static wrist straps, and store the components in anti-static packaging.
  • The AXK7L30223G is designed to operate in standard environmental conditions. For high-vibration environments, consult with a Panasonic Electronic Components' representative or a qualified engineer to determine the component's suitability and any necessary design modifications.
  • The AXK7L30223G is designed to meet industry-standard reliability and lifespan expectations. Consult the datasheet and Panasonic Electronic Components' reliability reports for specific information on MTBF, FIT rates, and operating life.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXK7L30223G Overview

Use the download button to access the AXK7L30223G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXK7L, or try a keyword search, such as Headers and Edge Type Connectors
