AXT310124 - Panasonic

Description: Narrow pitch socket P4S ( 0.4 mm pitch ), 10 positions

Download AXT310124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

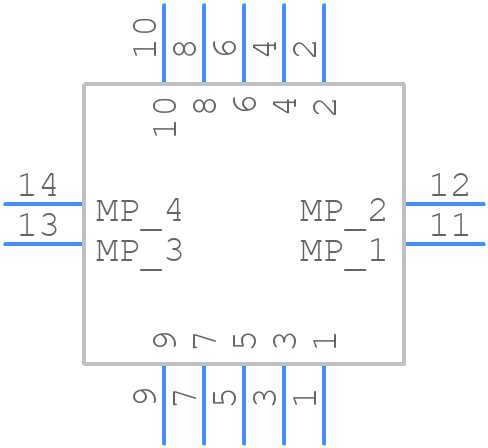

AXT310124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXT310124 - Panasonic PCB footprint - Other - Other - AXT310124-6
click to zoom
3D Models
AXT310124 - Panasonic - 3D model - Other - AXT310124-6
click to zoom

AXT310124 Details

  • Manufacturer Part Number:

    AXT310124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0
