AXT316124 - Panasonic

Description: Panasonic P4S Series 0.4mm Pitch 16 Way 2 Row PCB Socket, Surface Mount, Solder Termination

Download AXT316124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

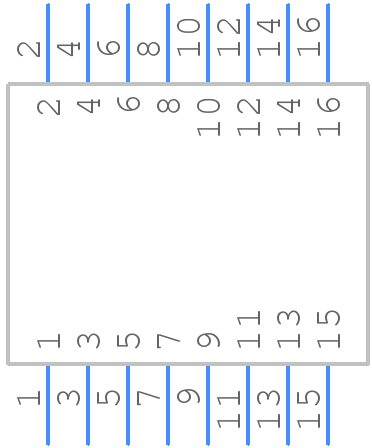

AXT316124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXT316124 - Panasonic PCB footprint - Other - Other - AXT316124-1
click to zoom
3D Models
AXT316124 - Panasonic - 3D model - Other - AXT316124-1
click to zoom

AXT316124 Details

  • Manufacturer Part Number:

    AXT316124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

AXT316124 Frequently Asked Questions (FAQs)

  • Store the AXT316124 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature is between 5°C to 30°C, and humidity should be below 60%.
  • Handle the AXT316124 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads, and use ESD-safe packaging and tools.
  • The maximum allowable voltage for the AXT316124 is 50V. Exceeding this voltage may cause damage to the component or affect its performance.
  • The AXT316124 is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation and thermal resistance when designing for high-temperature applications.
  • Use a soldering iron with a temperature of 350°C or less, and ensure the soldering time is within 3 seconds. Apply a small amount of solder to the pins, and avoid applying excessive force or pressure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXT316124 Overview

Use the download button to access the AXT316124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT31, or try a keyword search, such as Headers and Edge Type Connectors
