Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the AXT414124. The input and output capacitors should be placed as close as possible to the IC, and the PCB traces should be kept short and wide to minimize inductance and resistance.
The AXT414124 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer between the IC and the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
Although the datasheet doesn't specify a maximum voltage for the EN pin, it's recommended to keep it within the range of 0V to VCC (3.3V or 5V) to ensure proper operation and prevent damage to the IC.
The AXT414124 is rated for operation up to 85°C, but it's not recommended to use it in environments above 70°C without proper thermal management and derating. Consult the datasheet and Panasonic's application notes for more information on high-temperature operation.
Start by verifying the power supply voltage, input and output capacitor values, and PCB layout. Check for proper thermal management and ensure the device is not overheating. Use an oscilloscope to monitor the output voltage and current, and consult Panasonic's application notes and technical support resources for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT414124 Overview

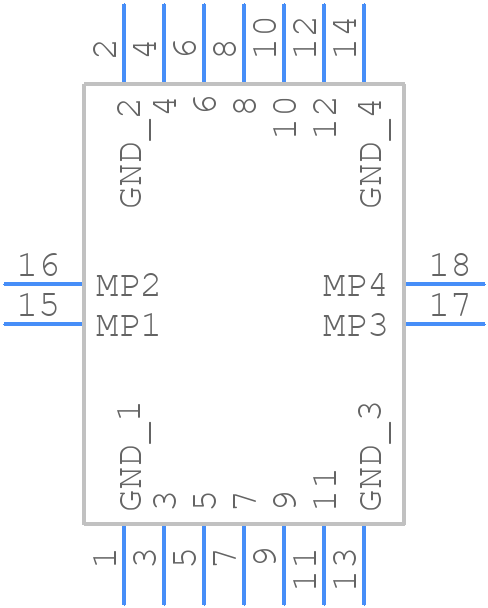

Use the download button to access the AXT414124 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT41,
or try a keyword search, such as Headers and Edge Type Connectors
