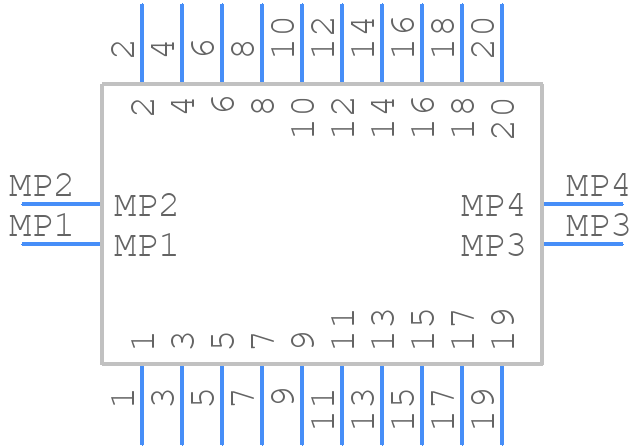

AXT520124 - Panasonic

AXT520124 Details

• Manufacturer Part Number:

  AXT520124

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.142 inch

• Body Depth:

  0.038 inch

• Body Length:

  0.256 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  GOLD OVER NICKEL

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  90 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  150VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .973 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.016 inch

• Mating Contact Row Spacing:

  0.03 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.28 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.4 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .1668 N
