AYC5F3210 - Panasonic

Description: Automotive Connectors CF2 32-pin Receptacle 41.8mm L x 16.6mm W x 11.8H

Download AYC5F3210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

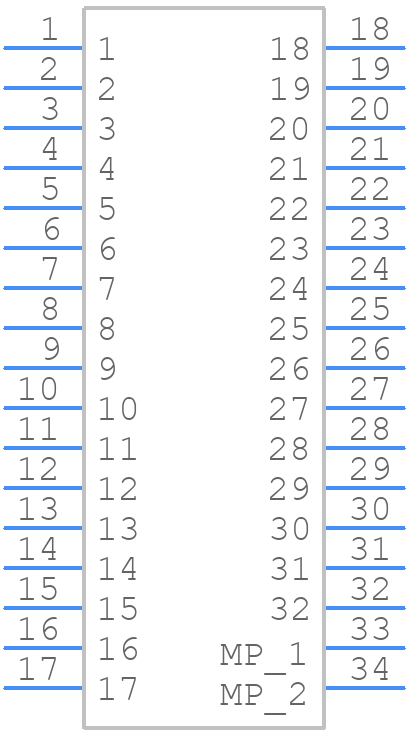

AYC5F3210 - Panasonic - PCB symbol
click to zoom
PCB Footprints

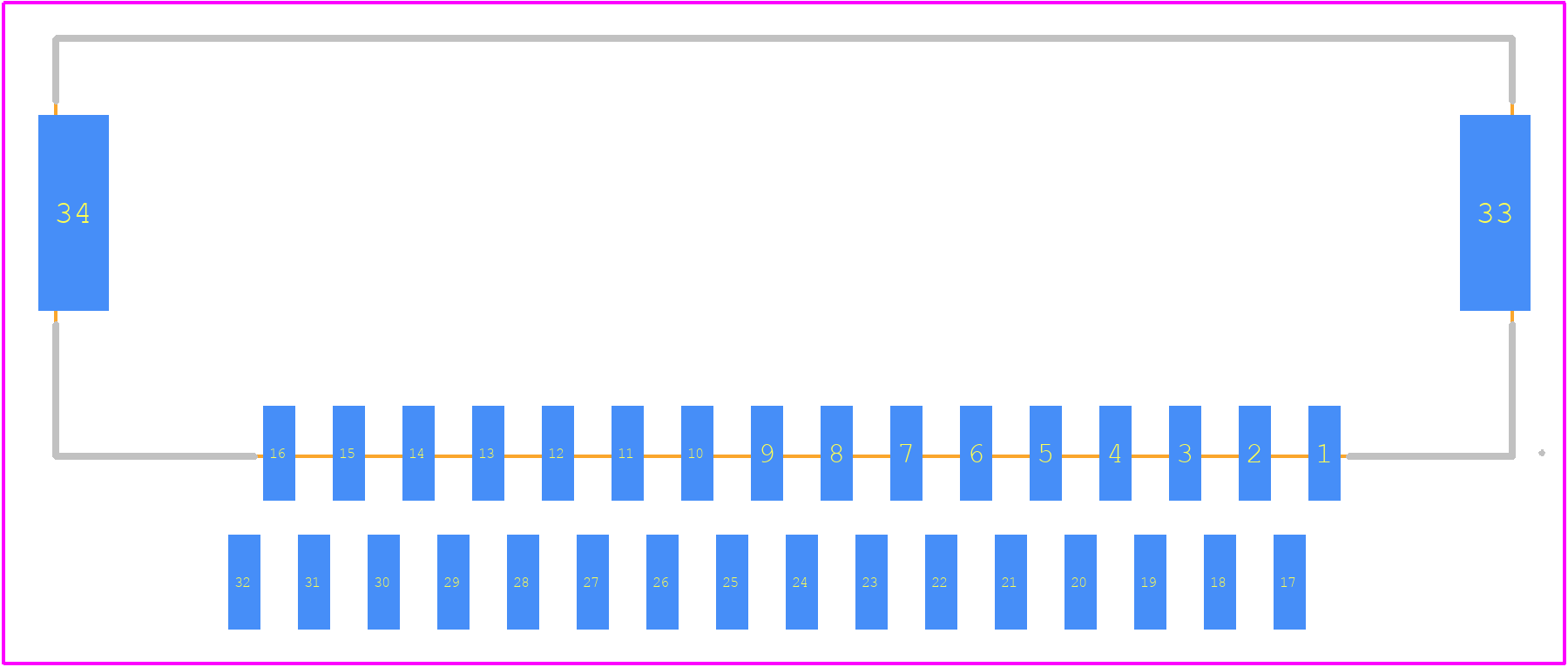

AYC5F3210 - Panasonic PCB footprint - Other - Other - AYC5F3210-2
click to zoom

AYC5F3210 Details

  • Manufacturer Part Number:

    AYC5F3210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Panasonic Electronic Components

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AYC5F3210 Overview

Use the download button to access the AYC5F3210 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AYC5F, or try a keyword search, such as Combination Line Connectors
