AZ102KE - Ohmite

Description: 1 kOhms ±10% 5.5W Through Hole Resistor Radial Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety Ceramic

Download AZ102KE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AZ102KE - Ohmite - PCB symbol
click to zoom
PCB Footprints

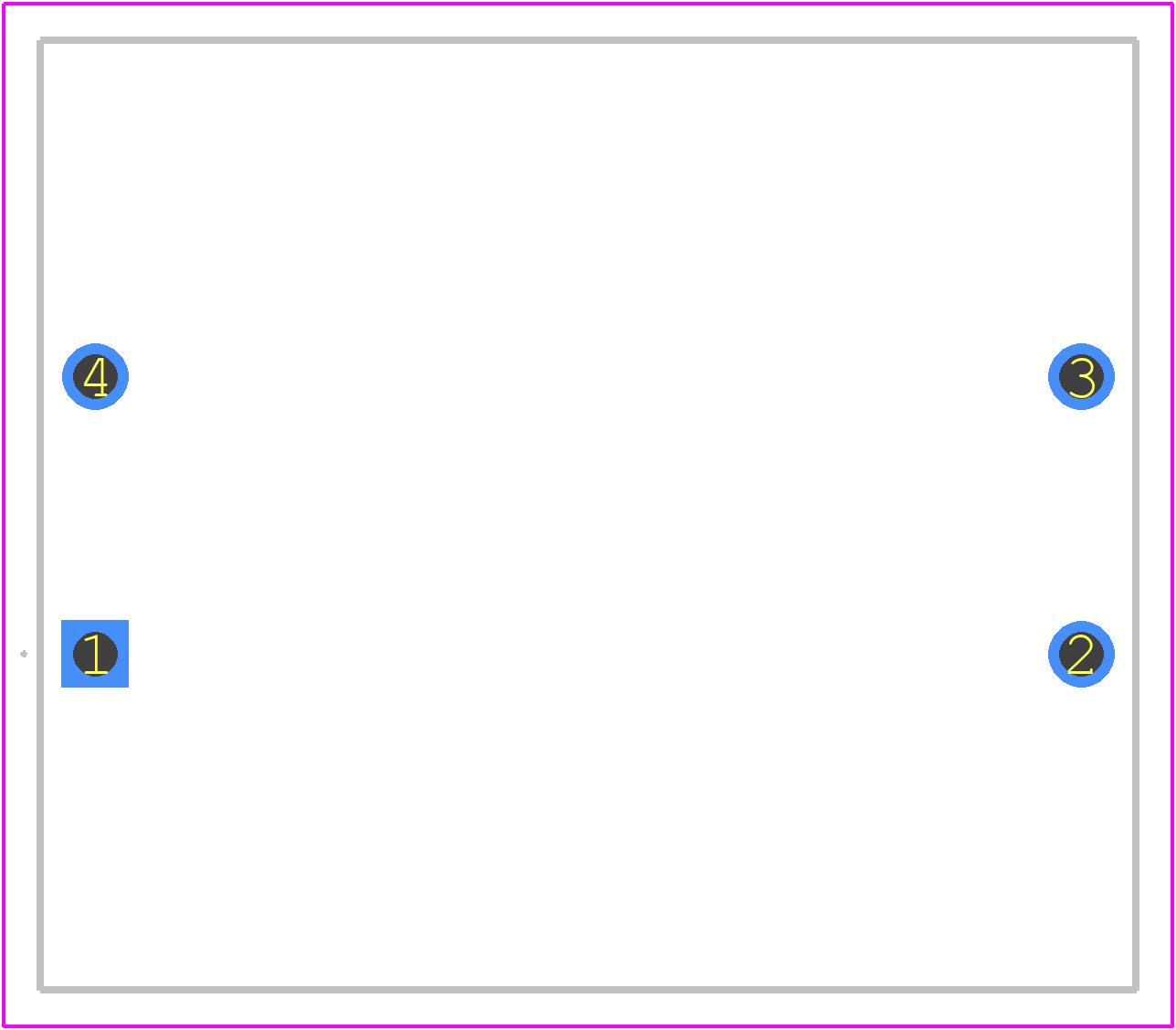

AZ102KE - Ohmite PCB footprint - Other - Other - AZ102KE-5
click to zoom
3D Models
AZ102KE - Ohmite - 3D model - Other - AZ102KE-5
click to zoom

AZ102KE Details

  • Manufacturer Part Number:

    AZ102KE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    5.5

  • Additional Feature:

    NON-INDUCTIVE

  • Construction:

    Cylinder

  • JESD-609 Code:

    e3

  • Lead Length:

    16.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    26 mm

  • Package Length:

    30 mm

  • Package Style:

    Radial

  • Rated Power Dissipation (P):

    5.5 W

  • Rated Temperature:

    50 °C

  • Resistance:

    1000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CERAMIC COMPOSITION

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

AZ102KE Frequently Asked Questions (FAQs)

  • The thermal resistance of the AZ102KE is approximately 10°C/W, which is relatively low, making it suitable for high-power applications.
  • Yes, the AZ102KE is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The recommended mounting method for the AZ102KE is through-hole mounting, with a recommended hole size of 0.125 inches (3.18 mm) in diameter.
  • Yes, the AZ102KE is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • The operating temperature range of the AZ102KE is -55°C to 150°C, making it suitable for use in a wide range of applications.
