AZ23C7V5-TP - MCC

Description: • Dual Zeners in Common Anode Configuration • △ V z for Both Diodes in One Case is ≤5%. • Ideally Suited for Automated Assembly Processes • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) • ESD(HBM): 30KV

Download AZ23C7V5-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

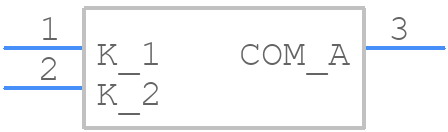

AZ23C7V5-TP - MCC - PCB symbol
click to zoom
PCB Footprints
AZ23C7V5-TP - MCC PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23-ren20
click to zoom
3D Models
AZ23C7V5-TP - MCC - 3D model - SOT23 (3-Pin) - SOT-23-ren20
click to zoom

AZ23C7V5-TP Details

  • Manufacturer Part Number:

    AZ23C7V5-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-3

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.95

  • Configuration:

    COMMON ANODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • Dynamic Impedance-Max:

    7 Ω

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Knee Impedance-Max:

    50 Ω

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Voltage-Nom:

    7.5 V

  • Reverse Current-Max:

    0.1 µA

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tol-Max:

    6.04%

  • Working Test Current:

    5 mA

AZ23C7V5-TP Frequently Asked Questions (FAQs)

  • The thermal resistance (junction-to-ambient) of the AZ23C7V5-TP is typically around 65°C/W, but it can vary depending on the specific application and PCB design.
  • The AZ23C7V5-TP has an operating temperature range of -40°C to 125°C, but it's recommended to derate the output current and power dissipation at higher temperatures to ensure reliability and prevent thermal shutdown.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT, where VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current. Make sure to consider the maximum power dissipation rating of 1.5W for the AZ23C7V5-TP.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of at least 10V. A larger capacitor value can help improve input ripple rejection and stability.
  • The AZ23C7V5-TP is a linear voltage regulator, not a switching regulator. It's designed for low-dropout, low-noise applications and is not suitable for switching regulator topologies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AZ23C7V5-TP Overview

Use the download button to access the AZ23C7V5-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AZ23C, or try a keyword search, such as Zener Diodes
