B04P-VL footprint, schematic symbol and 3D model by JST (JAPAN SOLDERLESS TERMINALS)

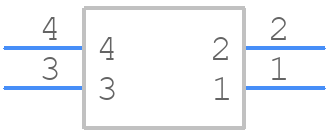

Symbol

click to zoom

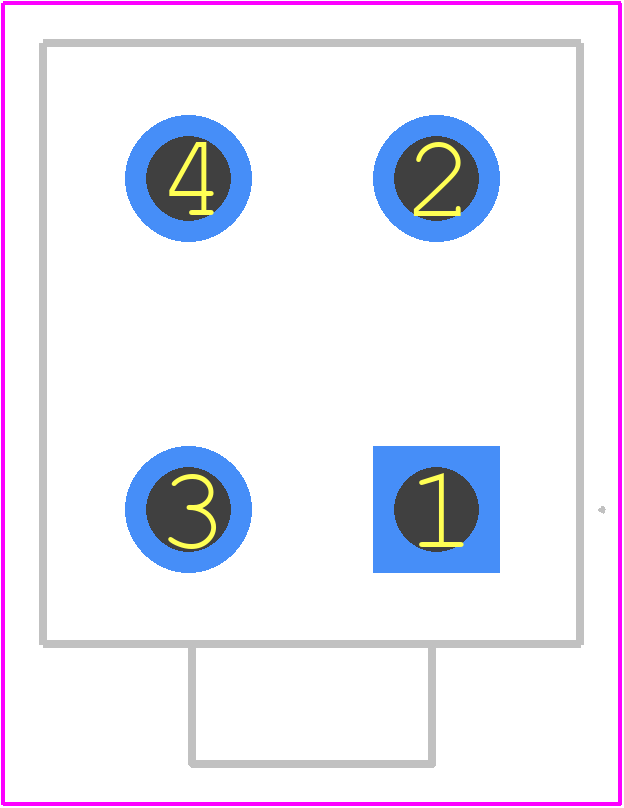

PCB Footprints

B04P-VL - JST (JAPAN SOLDERLESS TERMINALS) PCB footprint - Other - Other - B04P-VL-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B04P-VL
Part Number B04P-VL
Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - B04P-VL-2
Released Date Jan 15, 2025
Last Modified Date Apr 21, 2026 4:44 PM UTC
Pinout / Pin List Click Here (Member Only)

B04P-VL Details

Manufacturer Part Number:
B04P-VL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
JST Manufacturing
YTEOL:
7.75
Additional Feature:
SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
TIN
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE66
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

B04P-VL Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the B04P-VL connector is designed to withstand vibrations and is suitable for use in high-vibration applications, such as in automotive or industrial environments.
The operating temperature range for the B04P-VL connector is -40°C to 105°C (-40°F to 221°F).
Yes, the B04P-VL connector is designed for automated assembly and can be easily integrated into automated production lines.
The mating cycle life of the B04P-VL connector is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

B04P-VL Overview

Use the download button to access the B04P-VL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B04P-, or try a keyword search, such as Power Connectors
