B1101UCLRP - LITTELFUSE

Description: Thyristor Surge Protection Devices (TSPD) 100mA 500A Dual Negative

Download B1101UCLRP Model

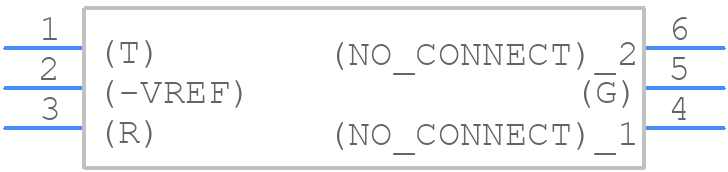

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
B1101UCLRP - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - MS-013
click to zoom
3D Models
B1101UCLRP - LITTELFUSE  - 3D model - Small Outline Packages - MS-013
click to zoom

B1101UCLRP Details

  • Manufacturer Part Number:

    B1101UCLRP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    6

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Littelfuse Inc

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    9.195 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.36 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    GAS DISCHARGE TUBE SUPPRESSOR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    3.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.39 mm

B1101UCLRP Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the B1101UCLRP involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure proper soldering of the B1101UCLRP, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a reflow oven or a hot air gun to solder the device, and avoid applying excessive force or pressure to the device during the soldering process.
  • The B1101UCLRP has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the B1101UCLRP is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. Additionally, it's recommended to use a vibration-resistant PCB material and to follow the manufacturer's guidelines for vibration testing.
  • To troubleshoot issues with the B1101UCLRP, start by checking the input voltage and current, and ensure that the device is properly soldered to the PCB. Use an oscilloscope to check for any unusual voltage or current waveforms, and verify that the device is operating within its specified parameters. If the issue persists, consult the datasheet and application notes for further guidance.
