B20J5K0E - Ohmite

Description: Ohmite B20 Series ceramic Axial Wirewound Resistor 5kΩ ±5% 20W ±260ppm/°C

Download B20J5K0E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B20J5K0E - Ohmite - PCB symbol
click to zoom
PCB Footprints

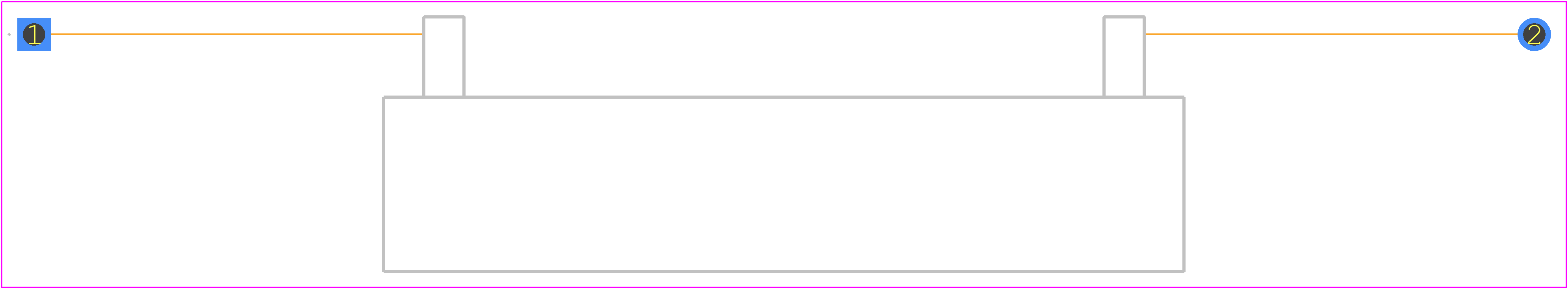

B20J5K0E - Ohmite PCB footprint - Other - Other - 11.11mm x 50.8mm
click to zoom
3D Models
B20J5K0E - Ohmite - 3D model - Other - 11.11mm x 50.8mm
click to zoom

B20J5K0E Details

  • Manufacturer Part Number:

    B20J5K0E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    10

  • Construction:

    All-Welded

  • JESD-609 Code:

    e3

  • Lead Diameter:

    1.02 mm

  • Lead Length:

    38.1 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    350 °C

  • Package Diameter:

    11.11 mm

  • Package Length:

    50.8 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Rated Power Dissipation (P):

    20 W

  • Rated Temperature:

    25 °C

  • Resistance:

    5000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    260 ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    750 V

B20J5K0E Frequently Asked Questions (FAQs)

  • The thermal resistance of the B20J5K0E is typically around 10°C/W, but this value can vary depending on the specific application and mounting method.
  • While the B20J5K0E is a wirewound resistor, it's not ideal for high-frequency applications (>1 MHz) due to its inductive nature. For high-frequency applications, consider using a thin-film or metal-film resistor instead.
  • The B20J5K0E is designed to withstand moderate vibration, but it's not suitable for extreme vibration environments. If you need a resistor for a high-vibration application, consider using a more ruggedized component or a resistor with a specialized vibration-resistant design.
  • Yes, the B20J5K0E is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The recommended derating curve for the B20J5K0E is typically around 50-60% of the maximum power rating at 70°C, but this can vary depending on the specific application and environmental conditions. Consult the manufacturer's documentation or contact their support team for more information.
