TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 2°C/s (3.6°F/s) temperature gradient.
Yes, the B32320I2656J011 is designed to withstand high vibrations. TDK's testing shows that it can tolerate vibrations up to 10G (98m/s²) in the frequency range of 10Hz to 2kHz.
The B32320I2656J011 is designed to operate in humid environments. TDK's testing shows that it can withstand 85°C (185°F) at 85% relative humidity for 1000 hours without significant degradation.
TDK recommends storing the B32320I2656J011 in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and relative humidity below 70%.
Yes, the B32320I2656J011 is designed to operate up to 10,000 meters (33,000 feet) above sea level. However, the capacitance value may decrease slightly at high altitudes due to the lower air pressure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32320I2656J011 Overview

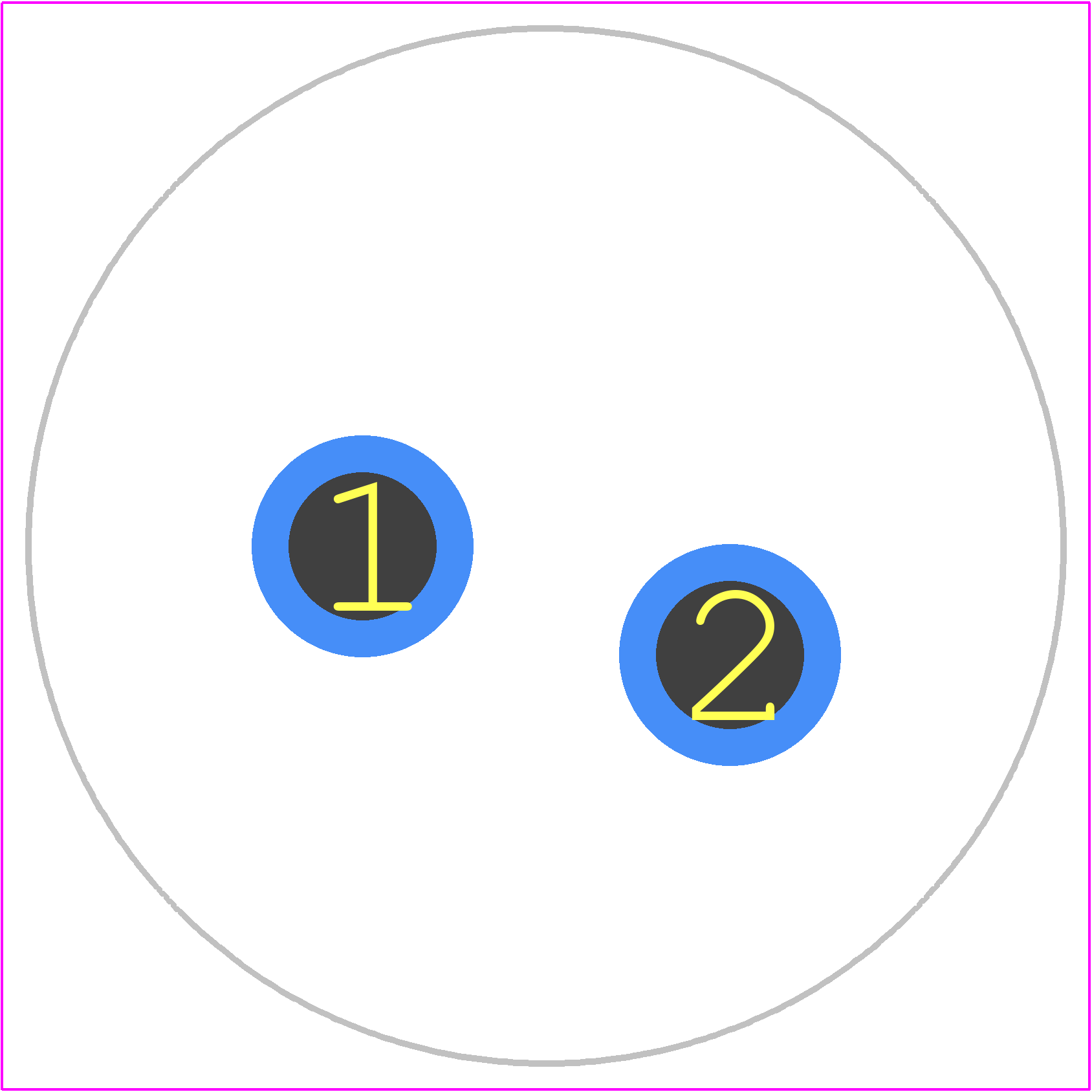

Use the download button to access the B32320I2656J011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3232,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
