TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows. However, it's always best to consult the specific soldering guidelines provided by TDK or to consult with their technical support team for more detailed information.
The ESR of the B32520C0474J000 capacitor is relatively low, which makes it suitable for high-frequency applications. A lower ESR reduces the energy losses and heat generation, allowing the capacitor to operate more efficiently. However, it's essential to consider the specific frequency range and operating conditions to ensure the capacitor meets the required performance specifications.
The B32520C0474J000 capacitor has an MSL rating of 2, which means it can withstand a maximum of 30°C/60% RH for 192 hours. This rating indicates that the capacitor is suitable for standard soldering processes, but it's still important to follow proper handling and storage procedures to prevent moisture absorption.
The B32520C0474J000 capacitor is rated for a maximum voltage of 50V. While it may be possible to use it in a high-voltage application, it's not recommended as it may exceed the capacitor's rated specifications and lead to premature failure or reduced lifespan. It's always best to consult with TDK's technical support team or to select a capacitor specifically designed for high-voltage applications.
The B32520C0474J000 capacitor has a tolerance of ±5%. While this tolerance is relatively tight, it's still important to consider the specific requirements of the precision circuit and to ensure that the capacitor's tolerance meets those requirements. In some cases, a tighter tolerance may be necessary, and it's best to consult with TDK's technical support team or to select a capacitor with a tighter tolerance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32520C0474J000 Overview

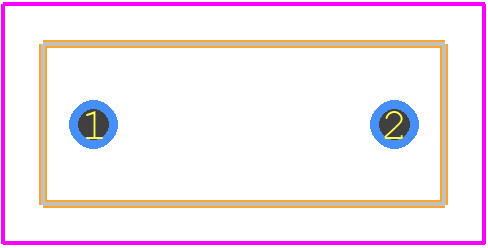

Use the download button to access the B32520C0474J000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3252,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
