B32560J0225K000 - TDK

Description: Metallized Polyester Capacitors (MKT), 2.2uF, 63V DC, 6.5mm(W) x 8.2mm(H) x 9mm(L)

Download B32560J0225K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32560J0225K000 - TDK - PCB symbol
click to zoom

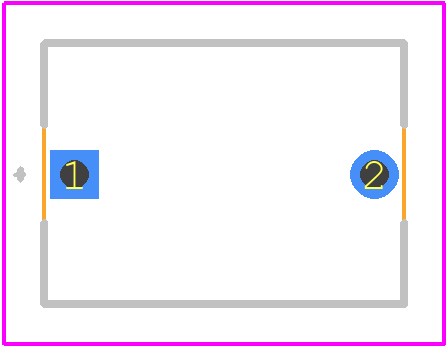

PCB Footprints
B32560J0225K000 - TDK PCB footprint - Other - Other - B32560J0225K000
click to zoom
3D Models
B32560J0225K000 - TDK - 3D model - Other - B32560J0225K000
click to zoom

B32560J0225K000 Details

  • Manufacturer Part Number:

    B32560J0225K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.36

  • Capacitance:

    2.2 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYETHYLENE TEREPHTHALATE

  • Height:

    8.2 mm

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    40 V

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    IEC60384-2

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    6.5 mm

B32560J0225K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 2°C (3.6°F) per second ramp-up and ramp-down rates.
  • Yes, the B32560J0225K000 is designed to withstand high vibrations. TDK's X7R dielectric material and internal construction ensure stable capacitance and low ESR even under severe vibration conditions.
  • The ESR of the B32560J0225K000 capacitor decreases with increasing frequency. According to TDK's application notes, the ESR at 100 kHz is approximately 20-30% of the ESR at 100 Hz.
  • Yes, the B32560J0225K000 is rated for operation up to 125°C (257°F). However, the capacitance and ESR may change with temperature, so it's essential to consult the datasheet and application notes for specific temperature-related characteristics.
  • Yes, the B32560J0225K000 is suitable for use in DC-DC converter designs due to its low ESR, high ripple current capability, and stable capacitance over a wide temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32560J0225K000 Overview

Use the download button to access the B32560J0225K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3256, or try a keyword search, such as Film Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
