B32560J6104K000 - TDK

Description: Metallized Polyester Capacitors (MKT), 0.1μF, 400V DC, 4.9mm(W) x 7.7mm(H) x 9mm(L)/002

Download B32560J6104K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32560J6104K000 - TDK - PCB symbol
click to zoom

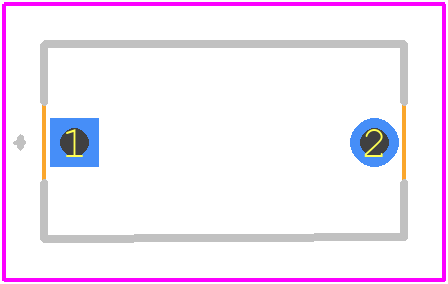

PCB Footprints
B32560J6104K000 - TDK PCB footprint - Other - Other - B32560J6104K000
click to zoom
3D Models
B32560J6104K000 - TDK - 3D model - Other - B32560J6104K000
click to zoom

B32560J6104K000 Details

  • Manufacturer Part Number:

    B32560J6104K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYETHYLENE TEREPHTHALATE

  • Height:

    7.7 mm

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    200 V

  • Rated (DC) Voltage (URdc):

    400 V

  • Reference Standard:

    IEC60384-2

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    4.9 mm

B32560J6104K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 3°C/s (5.4°F/s) temperature gradient.
  • The B32560J6104K000 capacitor is designed to meet the requirements of IEC 60384-4-1, which includes aging tests. TDK guarantees the capacitor's performance for a minimum of 1,000 hours at 85°C (185°F) with a voltage derating of 0.5 UR (unrated voltage).
  • The B32560J6104K000 capacitor has an MSL rating of 2a, which means it can withstand a maximum of 30 days at 30°C (86°F) and 60% relative humidity before soldering.
  • Yes, the B32560J6104K000 capacitor is designed to meet the requirements of IEC 60068-2-6, which includes vibration tests. However, it's recommended to consult with TDK or a qualified engineer to ensure the capacitor's performance in your specific application.
  • The ESR of the B32560J6104K000 capacitor is not explicitly stated in the datasheet, but it can be estimated using the impedance vs. frequency graph provided. For a more accurate calculation, consult with TDK or a qualified engineer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32560J6104K000 Overview

Use the download button to access the B32560J6104K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3256, or try a keyword search, such as Film Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
