B32564J1336K000 - TDK

Description: Metallized Polyester Capacitors (MKT), 33μF, 100V DC, 13mm(W) x 19.8mm(H) x 29mm(L)

Download B32564J1336K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32564J1336K000 - TDK - PCB symbol
click to zoom
PCB Footprints

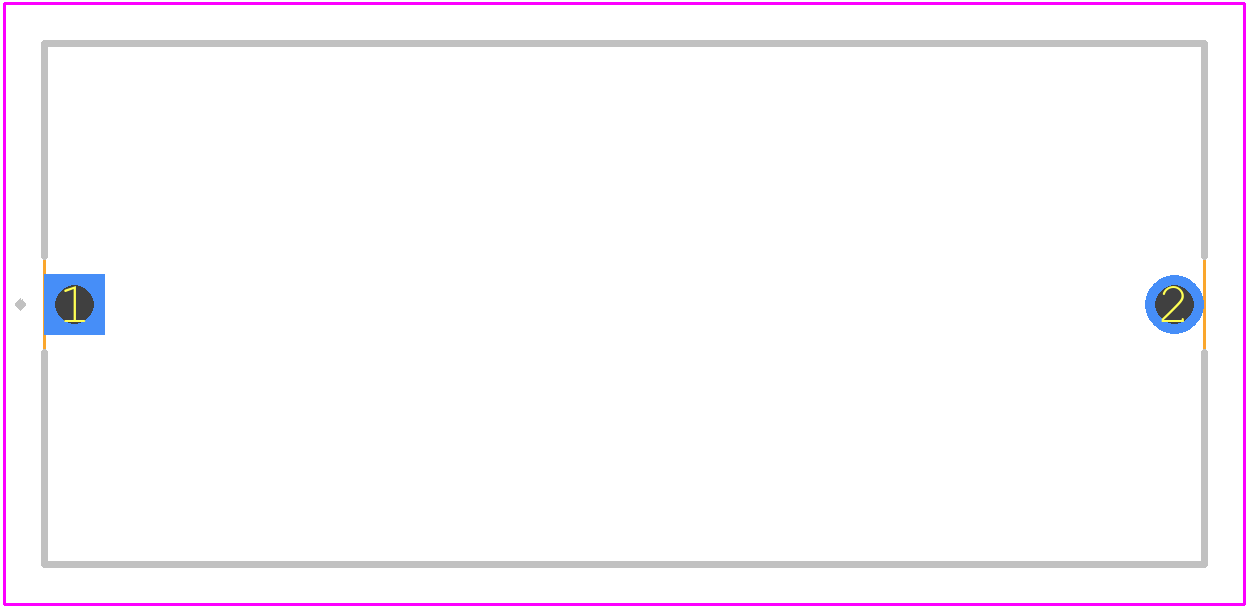

B32564J1336K000 - TDK PCB footprint - Other - Other - B32564J1336K000
click to zoom
3D Models
B32564J1336K000 - TDK - 3D model - Other - B32564J1336K000
click to zoom

B32564J1336K000 Details

  • Manufacturer Part Number:

    B32564J1336K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.26

  • Capacitance:

    33 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYETHYLENE TEREPHTHALATE

  • Height:

    19.8 mm

  • JESD-609 Code:

    e3

  • Length:

    29 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    63 V

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    IEC60384-2

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    27.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    13 mm

B32564J1336K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the B32564J1336K000 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the B32564J1336K000 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as in automotive or industrial systems.
  • The ESR of the B32564J1336K000 is approximately 10 mohm at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • Yes, the B32564J1336K000 is suitable for use in DC-DC converters due to its low ESR, high ripple current capability, and high reliability.
  • Yes, the B32564J1336K000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
