B32672L8822J000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 0.0082uF, 2000V DC, 6mm(W) x 12mm(H) x 18mm(L)

Download B32672L8822J000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32672L8822J000 - TDK - PCB symbol
click to zoom
PCB Footprints

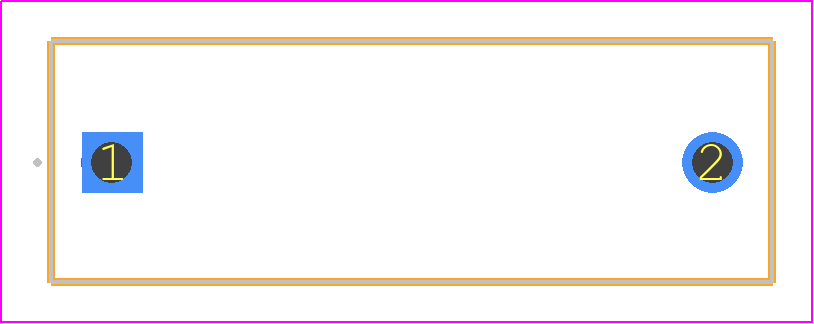

B32672L8822J000 - TDK PCB footprint - Other - Other - B32672_(18_x_6_H12)
click to zoom
3D Models
B32672L8822J000 - TDK - 3D model - Other - B32672_(18_x_6_H12)
click to zoom

B32672L8822J000 Details

  • Manufacturer Part Number:

    B32672L8822J000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.92

  • Capacitance:

    0.0082 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    12 mm

  • JESD-609 Code:

    e3

  • Length:

    18 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    700 V

  • Rated (DC) Voltage (URdc):

    2000 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    15 mm

  • Terminal Shape:

    WIRE

  • Width:

    6 mm

B32672L8822J000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B32672L8822J000 is 260°C (500°F) for 10 seconds or less, to prevent damage to the component.
  • Yes, B32672L8822J000 is designed to withstand high vibrations. It meets the IEC 60068-2-6 standard for vibration resistance, with a vibration amplitude of 1.5 mm and a frequency range of 10-2000 Hz.
  • Yes, B32672L8822J000 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high temperatures, vibrations, and humidity.
  • The ESR of B32672L8822J000 is 22 mohm at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • Yes, B32672L8822J000 is designed to operate in humid environments. It meets the IEC 60068-2-78 standard for humidity resistance, with a relative humidity of 85% and a temperature range of -40°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32672L8822J000 Overview

Use the download button to access the B32672L8822J000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3267, or try a keyword search, such as Film Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
