B32676G4206K - TDK

Description: Cap Film 20uF 450V PP 10% (42 X 30 X 45mm) Radial Plastic Rectangular Can 37.5mm 0.0033 Ohm 105°C Automotive Bulk

Download B32676G4206K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32676G4206K - TDK - PCB symbol
click to zoom
PCB Footprints

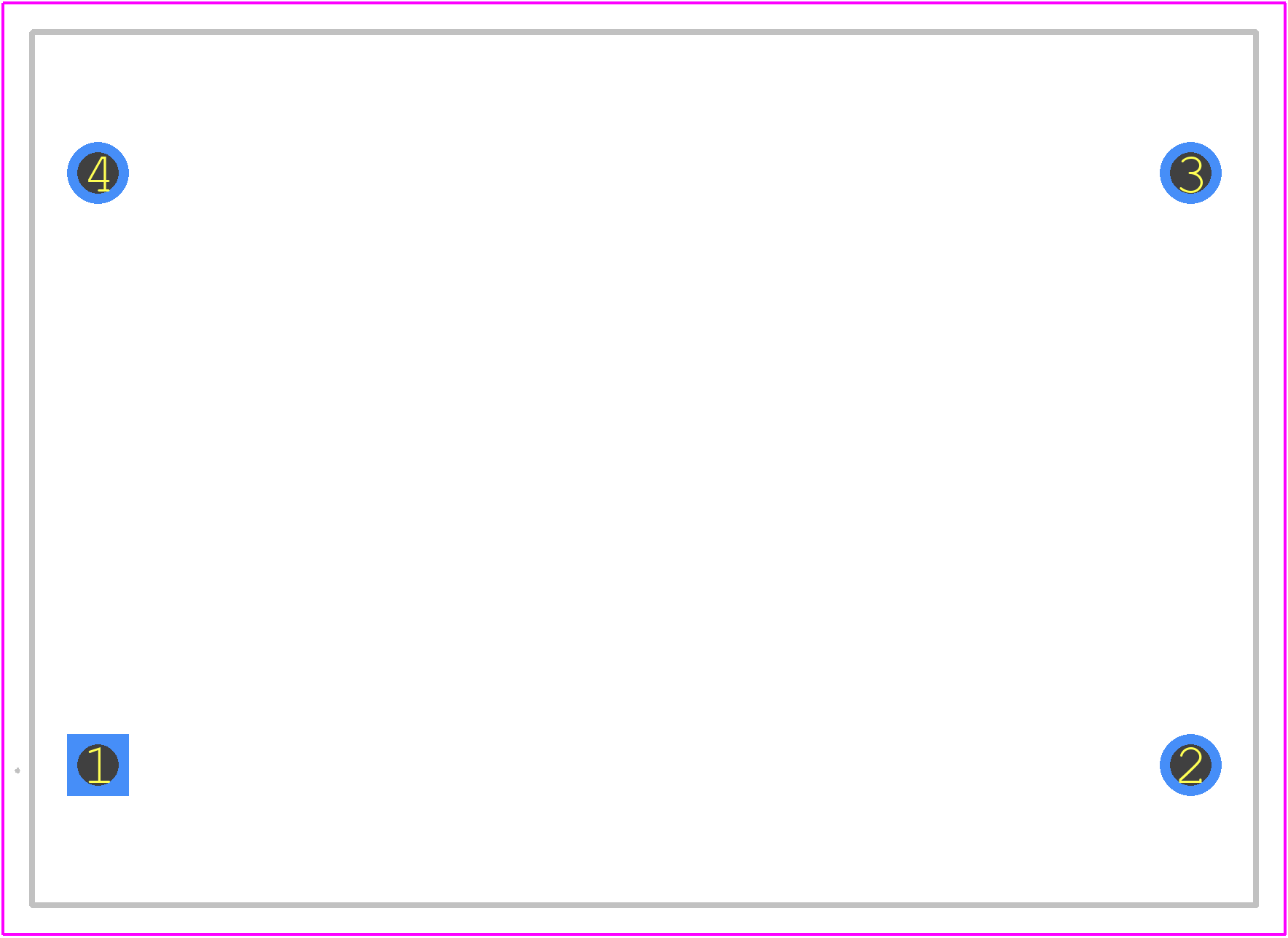

B32676G4206K - TDK PCB footprint - Other - Other - B32676G4206K-1
click to zoom
3D Models
B32676G4206K - TDK - 3D model - Other - B32676G4206K-1
click to zoom

B32676G4206K Details

  • Manufacturer Part Number:

    B32676G4206K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    2

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    275 V

  • Rated (DC) Voltage (URdc):

    450 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

B32676G4206K Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the B32676G4206K is designed to withstand high vibrations. TDK's testing shows that it can withstand vibrations up to 10G (98m/s²) in the frequency range of 10Hz to 2kHz.
  • The B32676G4206K is classified as a 'moisture-resistant' capacitor, with a moisture sensitivity level (MSL) of 2a. It can withstand 40°C (104°F) and 90% relative humidity for 168 hours without significant degradation.
  • TDK recommends storing the B32676G4206K capacitors in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 60% or less.
  • Yes, the B32676G4206K is designed to operate up to an altitude of 10,000 meters (32,808 feet) without significant degradation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32676G4206K Overview

Use the download button to access the B32676G4206K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3267, or try a keyword search, such as Film Capacitors
