B32676G6685K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 6.8uF, 630V DC, 20mm(W) x 39.5mm(H) x 42mm(L)

Download B32676G6685K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32676G6685K000 - TDK - PCB symbol
click to zoom
PCB Footprints

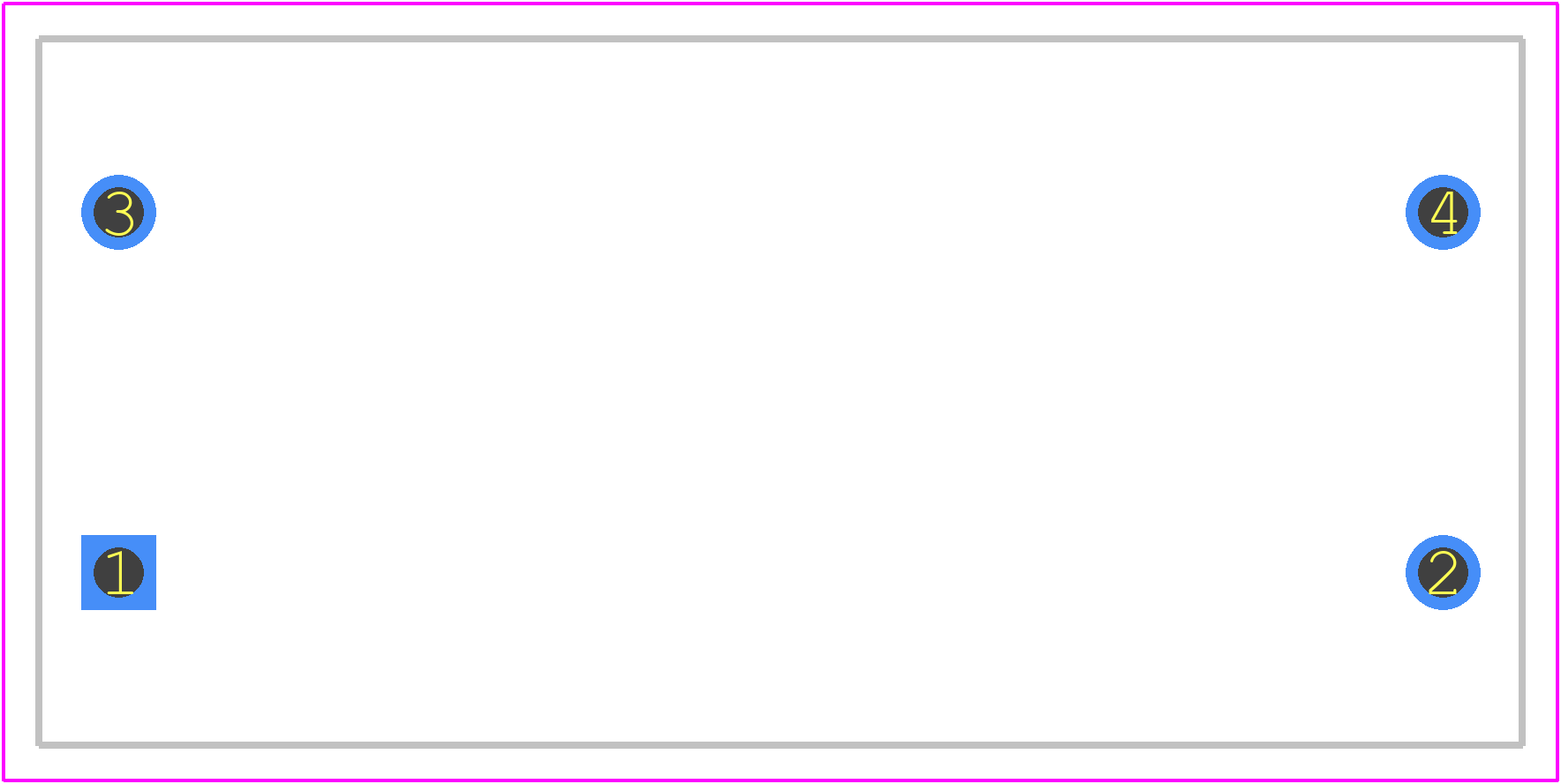

B32676G6685K000 - TDK PCB footprint - Other - Other - B32676G6685K000-1
click to zoom
3D Models
B32676G6685K000 - TDK - 3D model - Other - B32676G6685K000-1
click to zoom

B32676G6685K000 Details

  • Manufacturer Part Number:

    B32676G6685K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    6.8 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    39.5 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    AEC-Q200, IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    20 mm

B32676G6685K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 3°C/s (5.4°F/s) temperature gradient.
  • Yes, the B32676G6685K000 is designed to withstand high vibrations. It meets the IEC 60068-2-6 vibration test standard, which involves sinusoidal vibration at 10-2000 Hz, 10 G amplitude, and 3 axes.
  • Yes, the B32676G6685K000 is designed to operate in humid environments. It meets the IEC 60068-2-78 humidity test standard, which involves 85°C (185°F) and 85% relative humidity for 1000 hours.
  • The B32676G6685K000 has a rated lifespan of 1000 hours at 105°C (221°F) and rated voltage, with a maximum capacitance change of ±15% and a maximum dissipation factor change of ±50%.
  • Yes, the B32676G6685K000 is AEC-Q200 qualified, which means it meets the Automotive Electronics Council's reliability standards for passive components in automotive applications.
