The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
Yes, the B32716H8306K000 is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive and industrial systems.
The ESR of the B32716H8306K000 is relatively low, which means it can handle high-frequency switching and reduce energy losses, making it suitable for power supply and filtering applications.
Yes, the B32716H8306K000 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
The recommended storage condition is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 80%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32716H8306K000 Overview

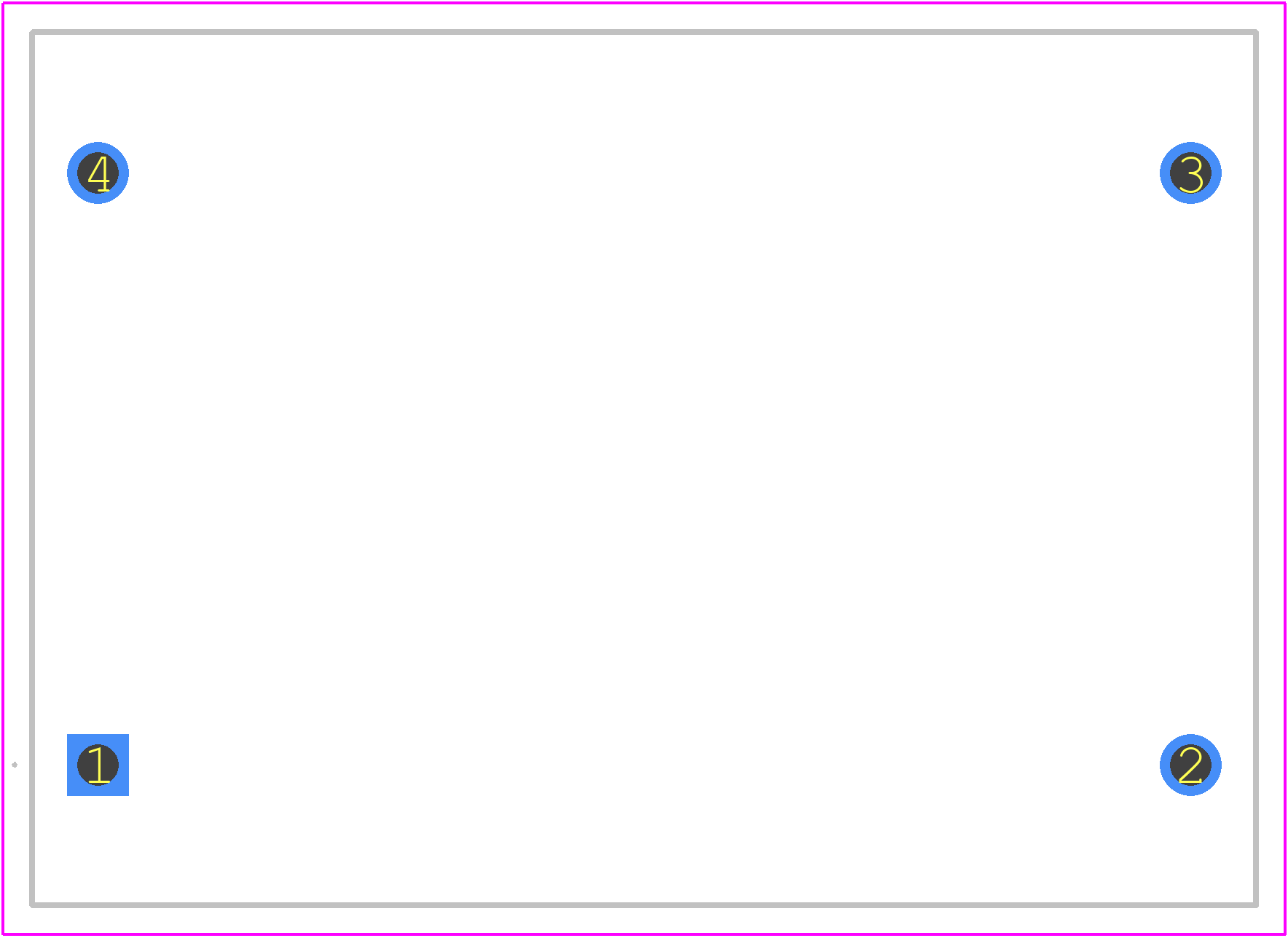

Use the download button to access the B32716H8306K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3271,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
