B32756G7206K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 20μF, 550V DC, 30(W) x 45(H) x 42mm(L)

Download B32756G7206K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32756G7206K000 - TDK - PCB symbol
click to zoom
PCB Footprints

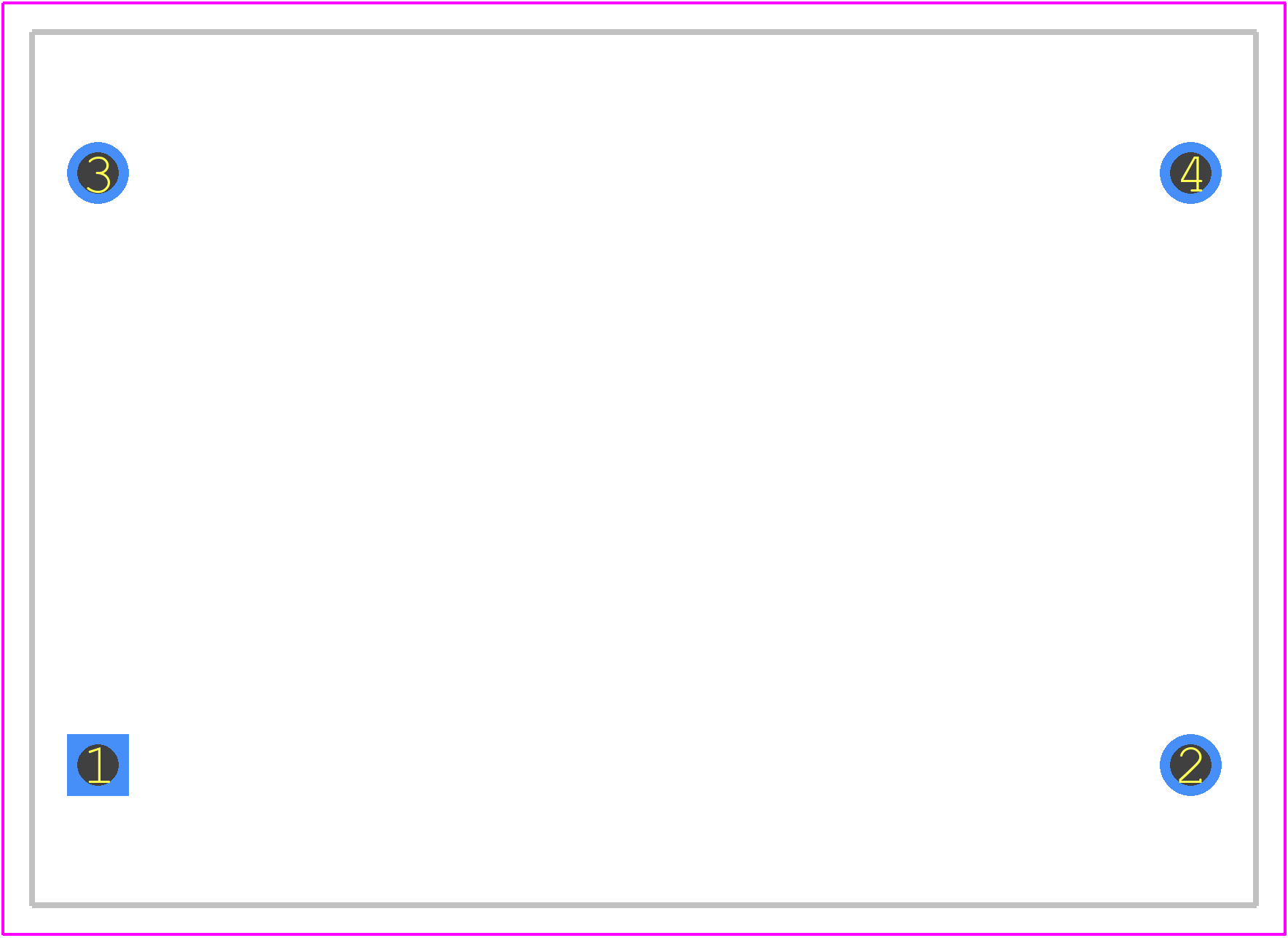

B32756G7206K000 - TDK PCB footprint - Other - Other - B32756G7206K000-2
click to zoom
3D Models
B32756G7206K000 - TDK - 3D model - Other - B32756G7206K000-2
click to zoom

B32756G7206K000 Details

  • Manufacturer Part Number:

    B32756G7206K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    275 V

  • Rated (DC) Voltage (URdc):

    550 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

B32756G7206K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B32756G7206K000 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, the B32756G7206K000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The ESR of the B32756G7206K000 capacitor is approximately 30 mΩ at 100 kHz, as specified in the datasheet.
  • Yes, the B32756G7206K000 capacitor is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as in automotive or industrial systems.
  • The MSL of the B32756G7206K000 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
