Part Image

B32774D4226K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 22uF, 450V DC, 22mm(W) x 36.5mm(H) x 31.5mm(L)

Download B32774D4226K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32774D4226K000 - TDK - PCB symbol
click to zoom
PCB Footprints

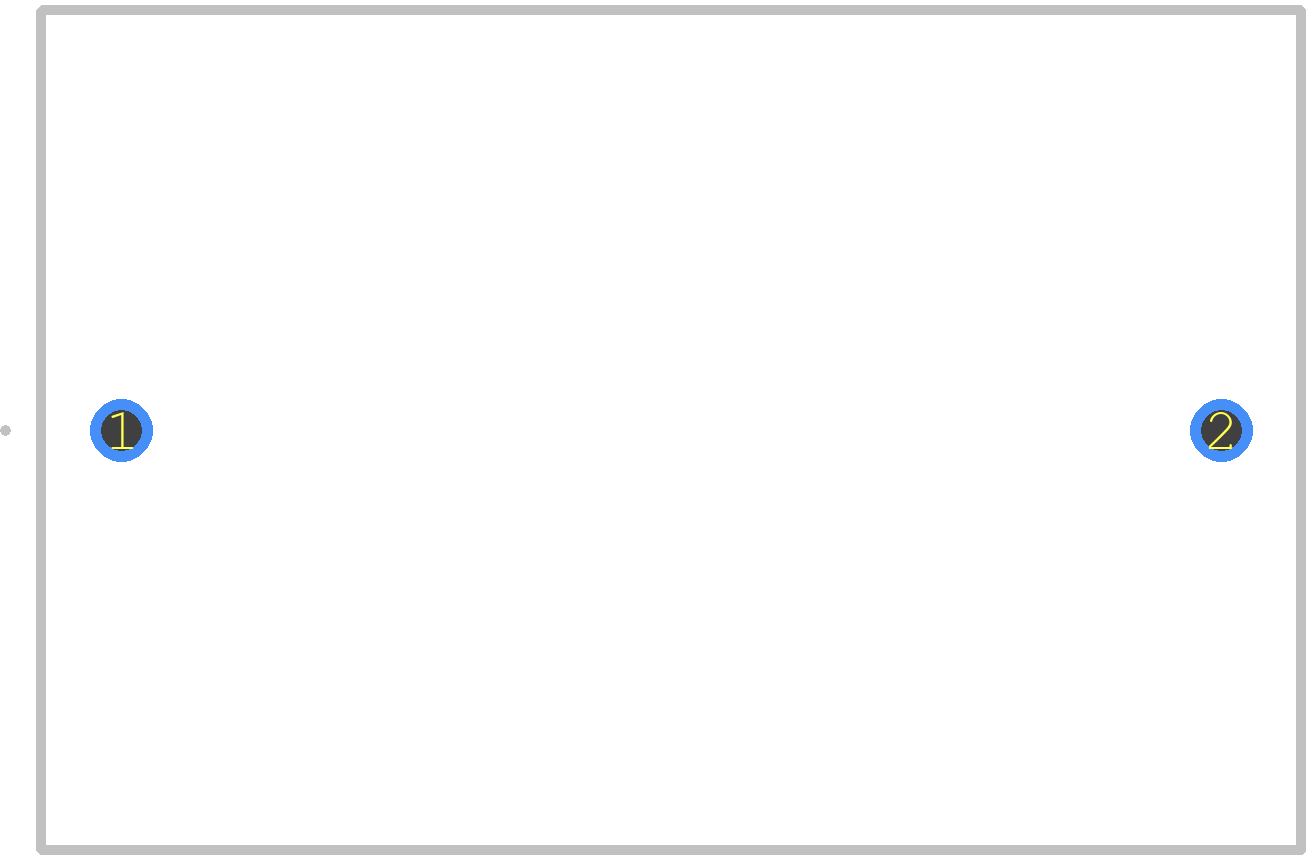

B32774D4226K000 - TDK PCB footprint - Other - Other - B32674D (31.5x20)
click to zoom
3D Models
B32774D4226K000 - TDK - 3D model - Other - B32674D (31.5x20)
click to zoom

B32774D4226K000 Details

  • Manufacturer Part Number:

    B32774D4226K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.07

  • Capacitance:

    22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    36.5 mm

  • JESD-609 Code:

    e3

  • Length:

    31.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    450 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    27.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    22 mm

B32774D4226K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 3°C/s (5.4°F/s) temperature gradient.
  • Yes, the B32774D4226K000 is designed to withstand high vibrations. TDK's X7R dielectric material and internal construction ensure that the capacitor can operate reliably in environments with vibrations up to 10G.
  • The B32774D4226K000 is designed to be moisture-resistant and can operate in humid environments. However, it's essential to follow TDK's recommended storage and handling procedures to prevent moisture absorption.
  • The ESR of the B32774D4226K000 is not explicitly stated in the datasheet. However, according to TDK's application notes, the ESR for this capacitor is typically around 10-20 mΩ at 100 kHz.
  • The B32774D4226K000 is rated for operation up to 125°C (257°F). However, it's essential to derate the capacitor's voltage and current ratings according to TDK's guidelines for high-temperature operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32774D4226K000 Overview

Use the download button to access the B32774D4226K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277, or try a keyword search, such as Film Capacitors
