The recommended soldering temperature for B32776G8256K000 is between 260°C to 280°C, with a maximum temperature of 300°C for a short duration (less than 10 seconds).
Yes, B32776G8256K000 is designed to withstand high-vibration environments. It has a vibration resistance of 10 Hz to 2000 Hz, 10 mm amplitude, and 3 hours per axis (IEC 60068-2-6).
Yes, B32776G8256K000 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and high vibration resistance.
The ESR of B32776G8256K000 is approximately 30 mΩ at 100 kHz and 20°C. However, please note that ESR can vary depending on the frequency, temperature, and other factors.
Yes, B32776G8256K000 has a moisture resistance rating of 85°C/85% RH, which means it can operate in humid environments. However, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32776G8256K000 Overview

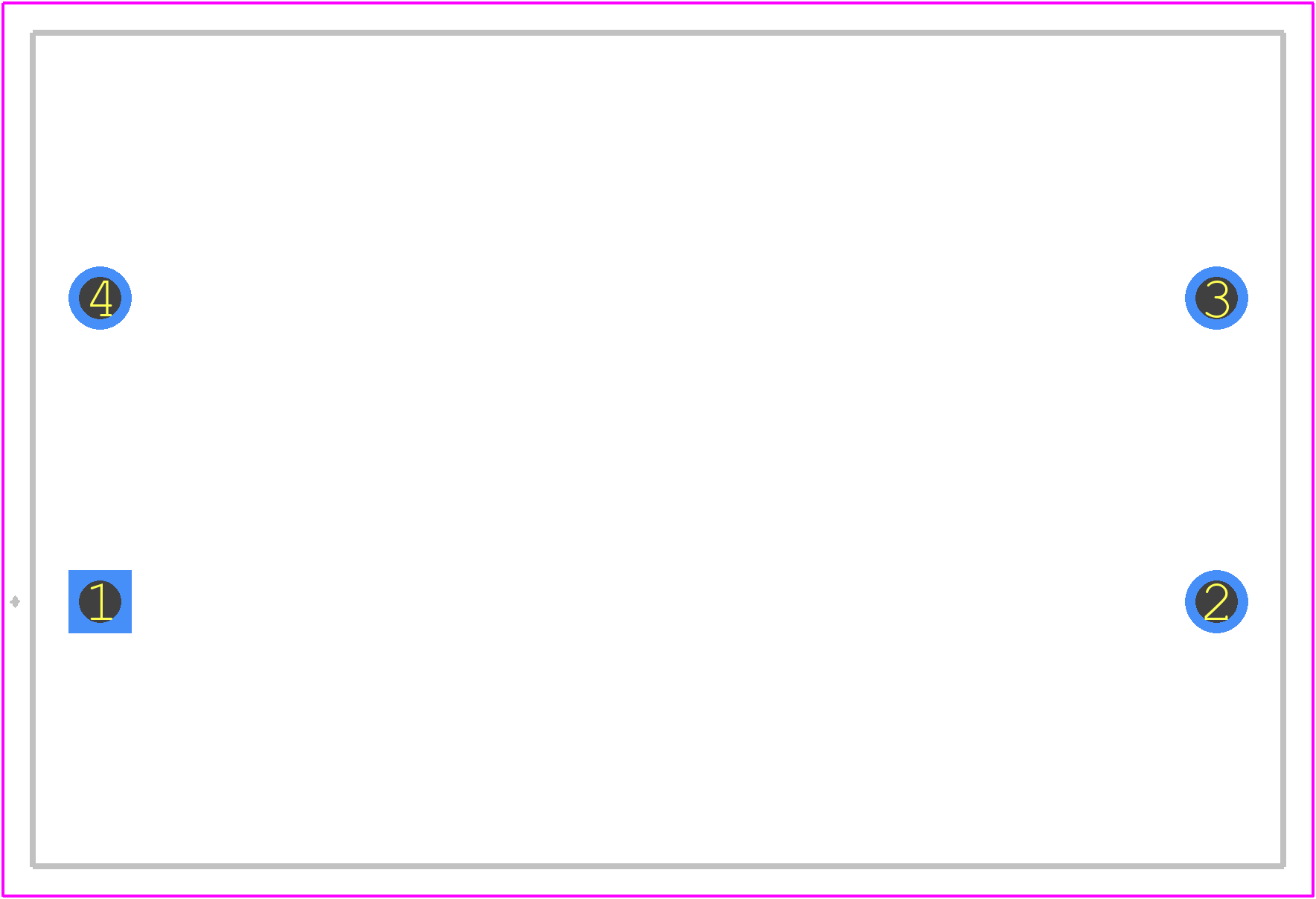

Use the download button to access the B32776G8256K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
