B32924B4225K000 - TDK

Description: EMI Suppression Capacitors, 2.2uF, 350Vrms AC, 21m(W) x 31m(H) x 31.5m(L)

Download B32924B4225K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32924B4225K000 - TDK - PCB symbol
click to zoom

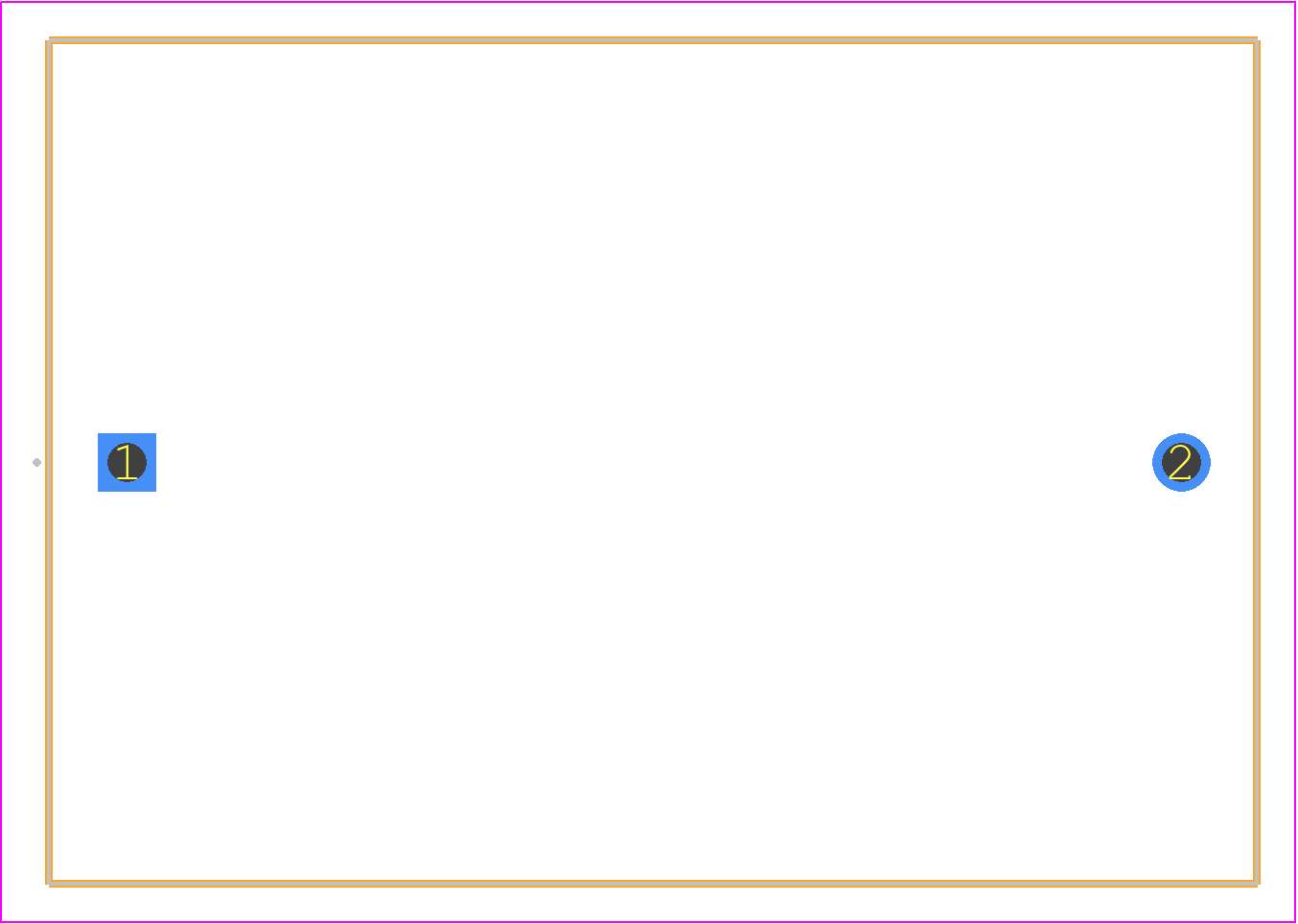

PCB Footprints
B32924B4225K000 - TDK PCB footprint - Other - Other - B32924A_(31.5_x_22)
click to zoom
3D Models
B32924B4225K000 - TDK - 3D model - Other - B32924A_(31.5_x_22)
click to zoom

B32924B4225K000 Details

  • Manufacturer Part Number:

    B32924B4225K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    2.2 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    31 mm

  • Length:

    31.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    350 V

  • Rated (DC) Voltage (URdc):

    650 V

  • Reference Standard:

    AEC-Q200; CSA; CUL; ENEC; IEC60384-14; UL

  • Surface Mount:

    NO

  • Terminal Pitch:

    27.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    21 mm

B32924B4225K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature of 260°C (500°F) for 10-30 seconds, with a peak temperature not exceeding 270°C (520°F) for 5 seconds.
  • The capacitance of B4225K000 decreases with increasing frequency due to the capacitor's internal inductance and resistance. Consult TDK's capacitance vs. frequency charts for specific values.
  • TDK recommends a voltage derating of 80% or less of the rated voltage to ensure reliable operation and prevent premature failure.
  • While B4225K000 is rated for up to 125°C (257°F), TDK recommends consulting their high-temperature capacitor series (e.g., the B43314 series) for applications exceeding 125°C.
  • The ESR of B4225K000 affects its high-frequency performance and impedance. Lower ESR values result in better high-frequency performance, but may increase the capacitor's cost.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32924B4225K000 Overview

Use the download button to access the B32924B4225K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3292, or try a keyword search, such as Film Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
