B3W9000RG2N - OMRON Electronics

Description: Green, Red Cap Tactile Switch, SPST-NO 50 mA 5.2mm

Download B3W9000RG2N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this B3W9000RG2N model

Email notifications will be applied after download.

Send part feedback

Symbol

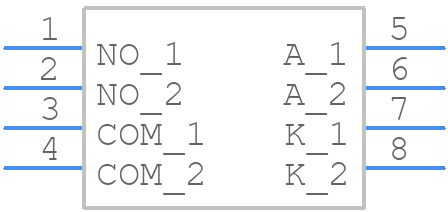

B3W9000RG2N - OMRON Electronics - PCB symbol

PCB Footprints

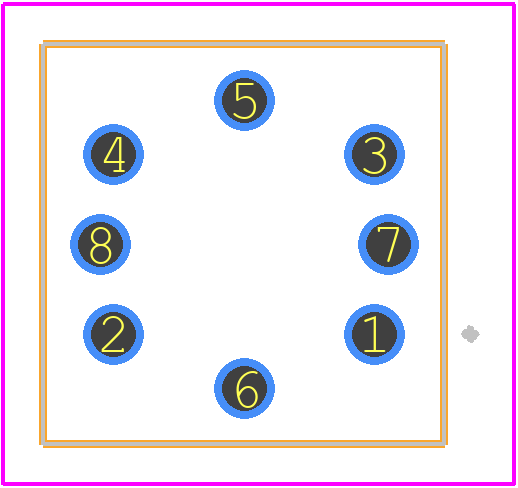

B3W9000RG2N - OMRON Electronics PCB footprint - Other - Other - B3W9000RG2N-3

3D Models

B3W9000RG2N - OMRON Electronics - 3D model - Other - B3W9000RG2N-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for B3W9000RG2N
Part Number B3W9000RG2N
Manufacturer OMRON Electronics
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - B3W9000RG2N-3
Released Date Oct 18, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

B3W9000RG2N Details

Manufacturer Part Number:
B3W9000RG2N
Manufacturer:
OMRON Electronic Components

Trust Checks

System Verified

B3W9000RG2N Overview

Use the download button to access the B3W9000RG2N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B3W90, or try a keyword search, such as Keypad Switches
