B41231A8338M000 footprint, schematic symbol and 3D model by TDK

Symbol

click to zoom

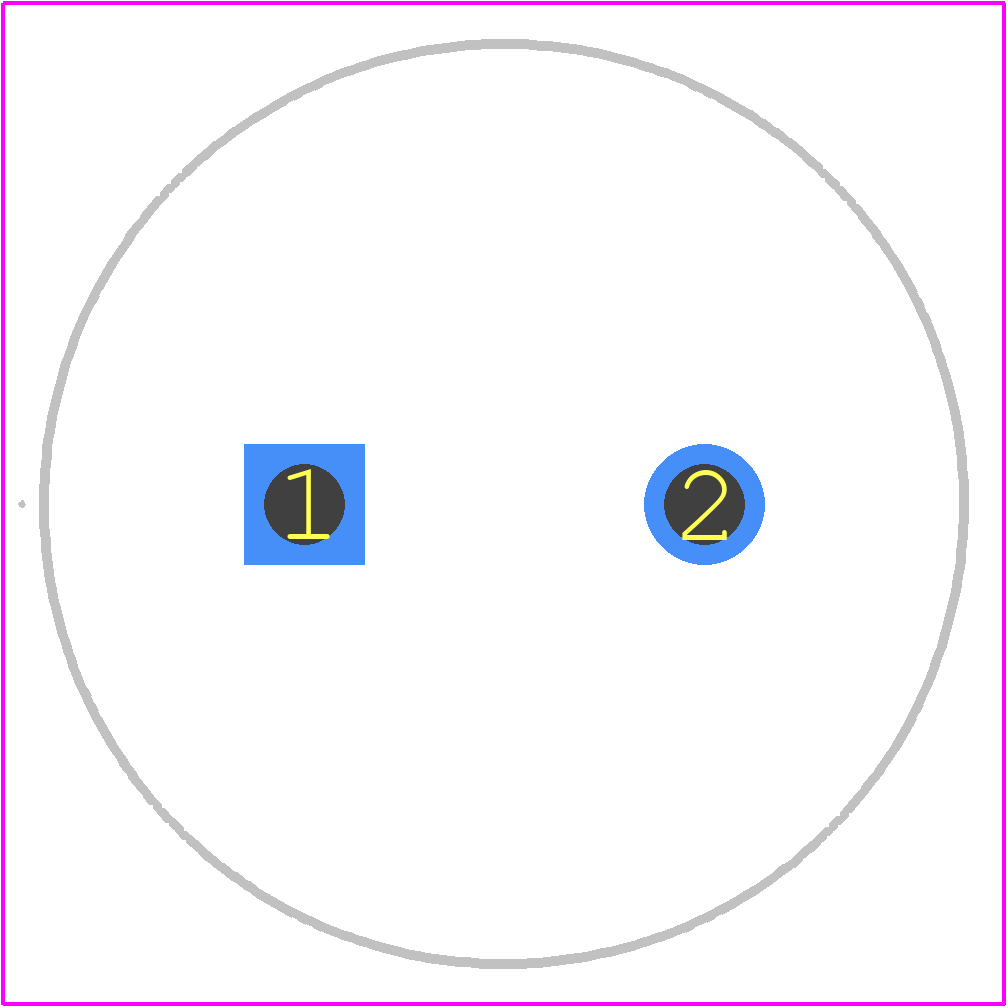

PCB Footprints

B41231A8338M000 - TDK PCB footprint - Other - Other - 22x35mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B41231A8338M000
Part Number B41231A8338M000
Manufacturer TDK
Pin Count 2
Part Category Capacitor Polarised
Package Category Other
Footprint Name Other - 22x35mm
Released Date May 14, 2026
Last Modified Date May 15, 2026 11:03 AM UTC
Pinout / Pin List Click Here (Member Only)

B41231A8338M000 Details

Manufacturer Part Number:
B41231A8338M000
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8532.22.00.40
Factory Lead Time:
24 Weeks
Manufacturer:
TDK Corporation
YTEOL:
6
Capacitance:
3300 µF
Capacitor Type:
ALUMINUM ELECTROLYTIC CAPACITOR
Diameter:
22 mm
Dielectric Material:
ALUMINUM (WET)
Leakage Current:
4.158 mA
Length:
35 mm
Mounting Feature:
THROUGH HOLE MOUNT
Negative Tolerance:
20%
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Shape:
CYLINDRICAL PACKAGE
Package Style:
Snap-in
Packing Method:
Bulk
Polarity:
POLARIZED
Positive Tolerance:
20%
Rated (DC) Voltage (URdc):
63 V
Ripple Current:
3140 mA
Surface Mount:
NO
Tan Delta:
0.25
Terminal Pitch:
10 mm
Terminal Shape:
SNAP-IN

B41231A8338M000 Frequently Asked Questions (FAQs)

The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
Yes, the B41231A8338M000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
The ESR of the B41231A8338M000 capacitor is typically around 30-50 mΩ, depending on the frequency and operating conditions.
Yes, the B41231A8338M000 capacitor is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive or industrial systems.
The MSL of the B41231A8338M000 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.

Trust Checks

Expert Contribution

System Verified

Community Approved

B41231A8338M000 Overview

Use the download button to access the B41231A8338M000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B4123, or try a keyword search, such as Aluminum Electrolytic Capacitors
