B41231B0278M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 80VDC 2700uF 20% PVC 6mm Terminals

Download B41231B0278M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B41231B0278M000 - TDK - PCB symbol
click to zoom
PCB Footprints

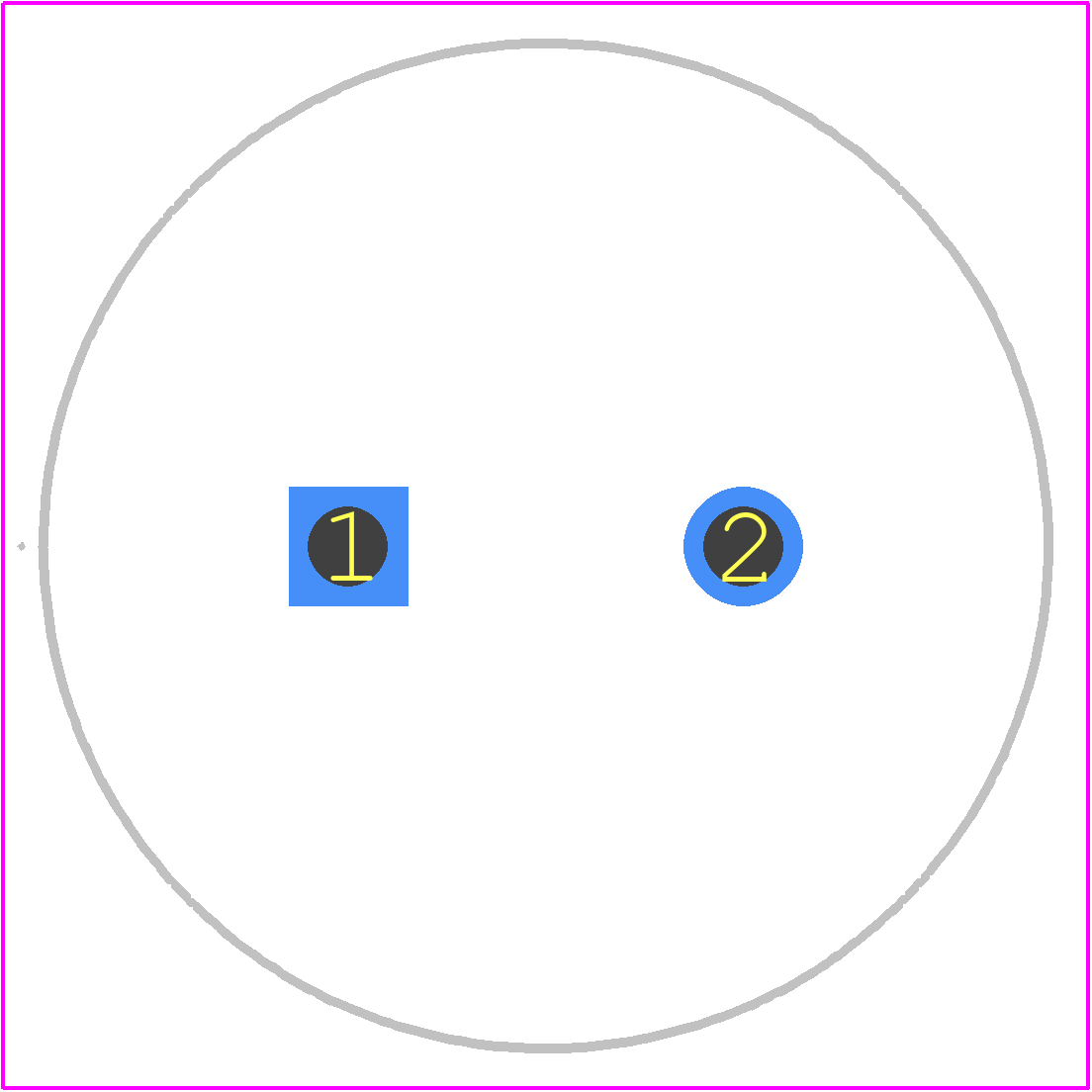

B41231B0278M000 - TDK PCB footprint - Other - Other - 25.4mm x 35mm
click to zoom
3D Models
B41231B0278M000 - TDK - 3D model - Other - 25.4mm x 35mm
click to zoom

B41231B0278M000 Details

  • Manufacturer Part Number:

    B41231B0278M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    2700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25.4 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    4.32 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    3940 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B41231B0278M000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B41231B0278M000 is between 250°C to 260°C, with a maximum peak temperature of 260°C for 10 seconds.
  • Yes, the B41231B0278M000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium above the specified limits.
  • The equivalent series resistance (ESR) of the B41231B0278M000 capacitor is 30 mohm maximum at 100 kHz and 20°C.
  • Yes, the B41231B0278M000 capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10 Hz to 2000 Hz, 1.5 mm double amplitude.
  • The moisture sensitivity level (MSL) of the B41231B0278M000 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
