B41231C7109M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 35VDC 10000uF 20% PVC 6mm Terminals

Download B41231C7109M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B41231C7109M000 - TDK - PCB symbol
click to zoom
PCB Footprints

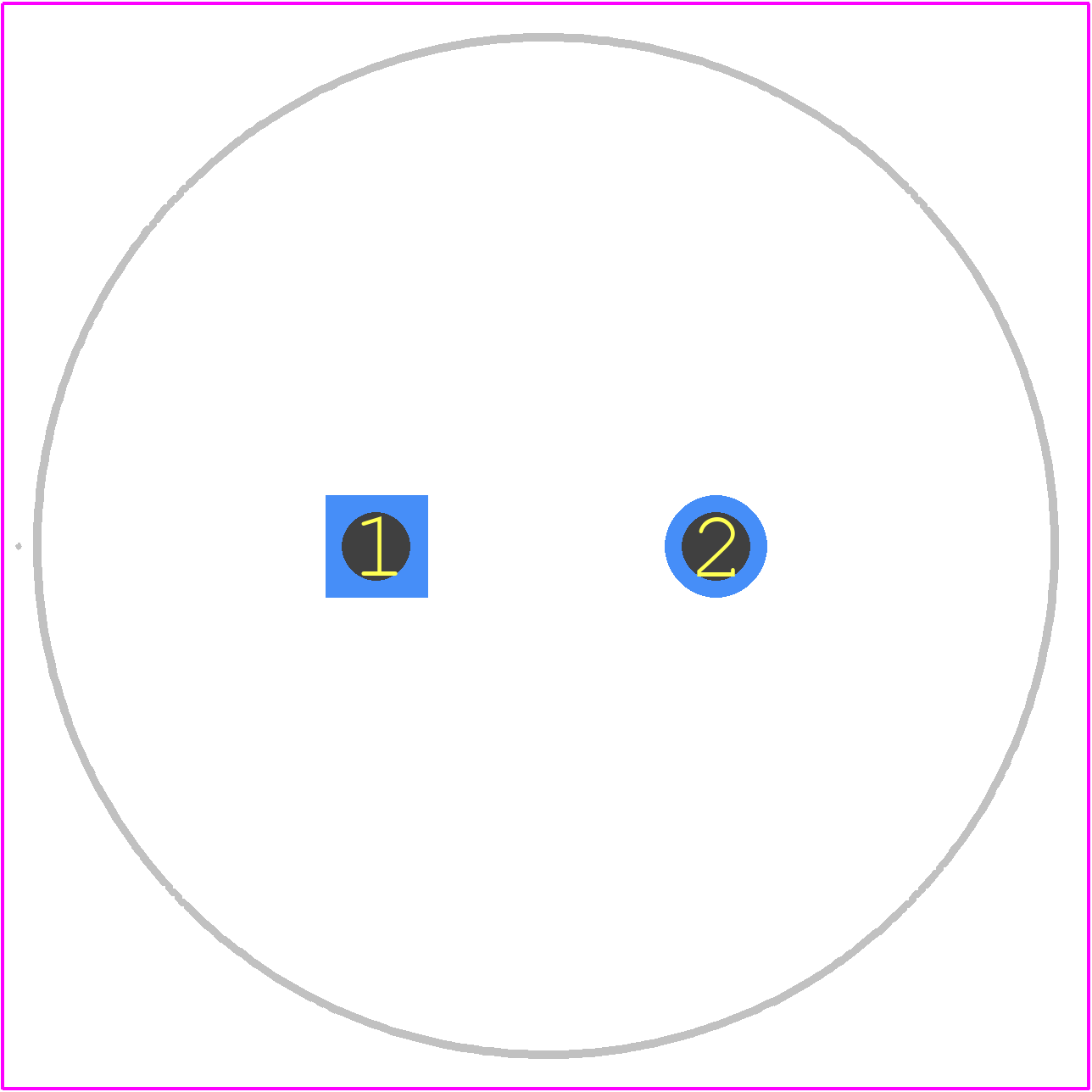

B41231C7109M000 - TDK PCB footprint - Other - Other - B41231C7109M000-5
click to zoom
3D Models
B41231C7109M000 - TDK - 3D model - Other - B41231C7109M000-5
click to zoom

B41231C7109M000 Details

  • Manufacturer Part Number:

    B41231C7109M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    7 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    4580 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.4

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B41231C7109M000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B41231C7109M000 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, the B41231C7109M000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The moisture sensitivity level (MSL) of B41231C7109M000 is MSL 2, which means it can withstand a maximum of 4 days in a humidity-controlled environment before soldering.
  • Yes, the B41231C7109M000 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and 3 axes.
  • The equivalent series resistance (ESR) of B41231C7109M000 is 10 mohm maximum at 100 kHz and 20°C.
