Description:Snap-in Al Lytic Capacitor 1000uF 400V Epcos 1000μF 400 V dc Aluminium Electrolytic Capacitor B43305, B43305 Series >100000h 35 (Dia.) x 50mm
The recommended land pattern for B43305A9108M000 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. The land pattern should be designed to ensure good solderability and thermal dissipation.
While the B43305A9108M000 is a robust component, it's essential to evaluate its performance in a high-vibration environment. TDK Corporation provides vibration testing data, and it's recommended to consult with their technical support to ensure the component meets the specific vibration requirements of your application.
To prevent damage during assembly, it's recommended to follow TDK Corporation's handling and storage guidelines, which include avoiding excessive bending, twisting, or flexing of the component leads, and using proper soldering techniques to prevent overheating or thermal shock.
Yes, TDK Corporation recommends following their soldering guidelines, which include using a soldering temperature of 260°C (500°F) or lower, and a soldering time of 3 seconds or less. It's also essential to use a solder with a melting point above 217°C (423°F) to ensure reliable connections.
The B43305A9108M000 is designed to operate in a variety of environments, but it's essential to evaluate its performance in humid or moist conditions. TDK Corporation provides information on the component's moisture sensitivity level (MSL) and recommends following proper handling and storage procedures to prevent moisture-related issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B43305A9108M000 Overview

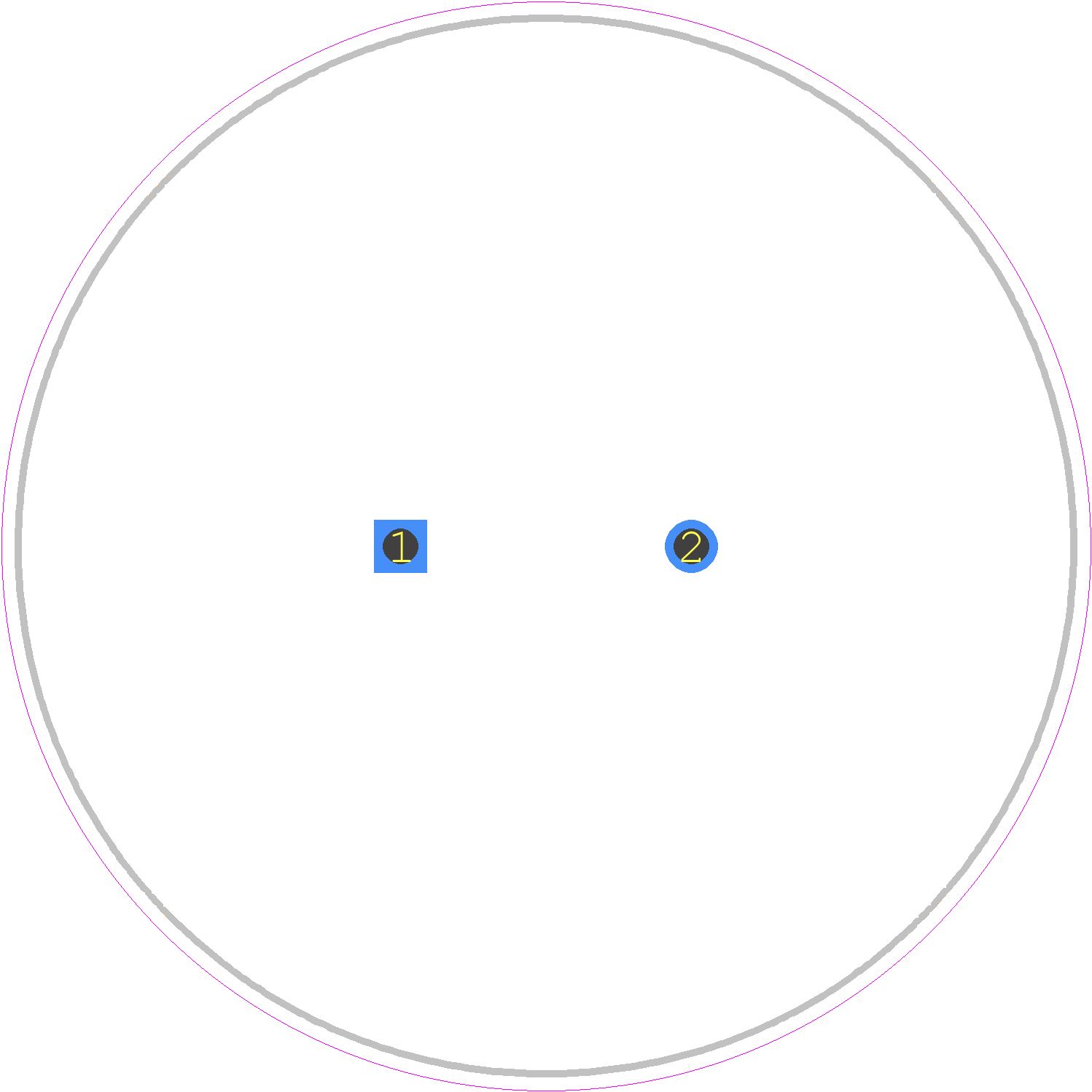

Use the download button to access the B43305A9108M000 schematic symbol, PCB footprint, and 3D model.
