B43501A9477M002 - TDK

Description: 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 140mOhm @ 100Hz 10000 Hrs @ 85°C

Download B43501A9477M002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43501A9477M002 - TDK - PCB symbol
click to zoom

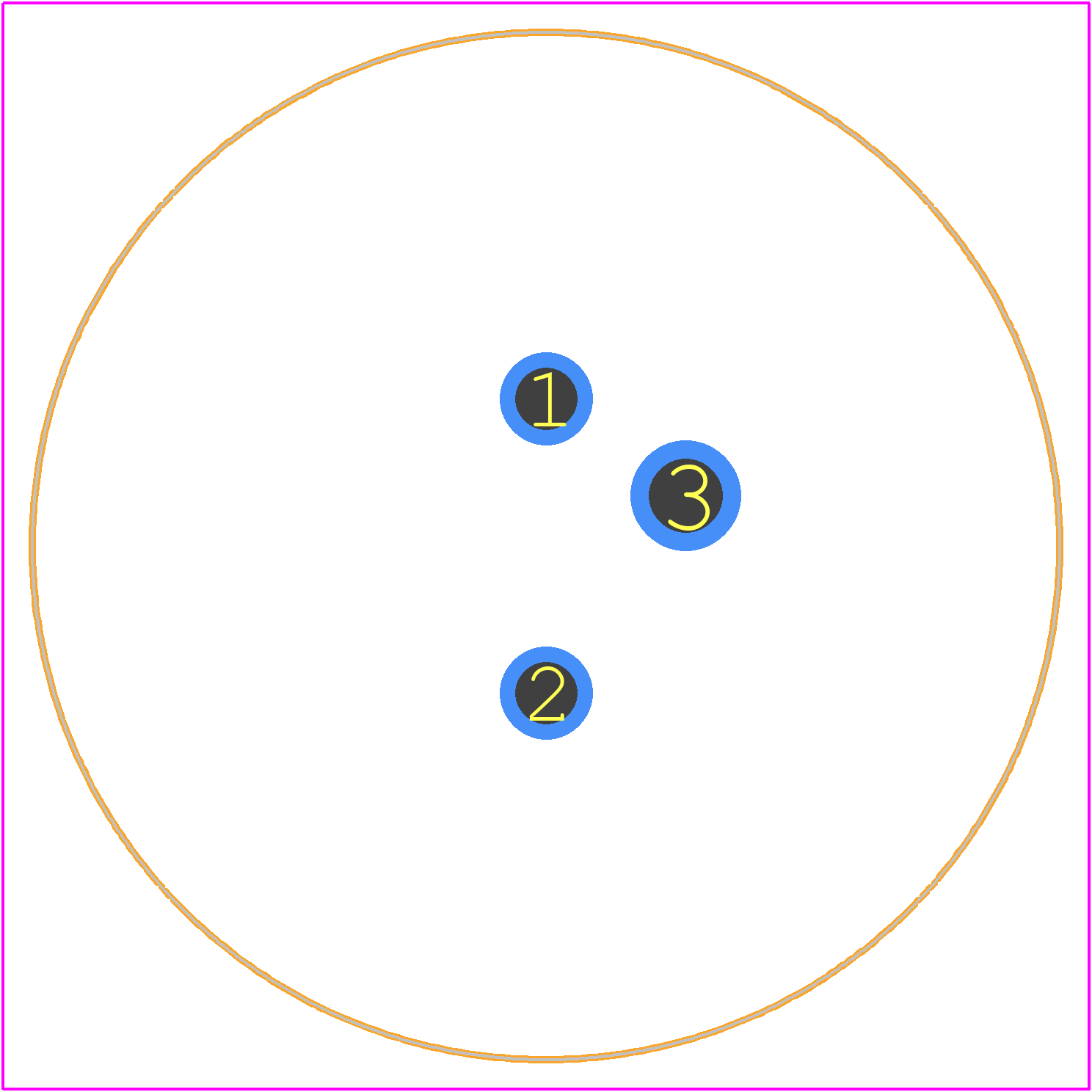

PCB Footprints
B43501A9477M002 - TDK PCB footprint - Other - Other - B43501A9477M002
click to zoom
3D Models
B43501A9477M002 - TDK - 3D model - Other - B43501A9477M002
click to zoom

B43501A9477M002 Details

  • Manufacturer Part Number:

    B43501A9477M002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    290 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.47981 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    CARDBOARD

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Reference Standard:

    IEC60384-4

  • Ripple Current:

    2600 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    SNAP-IN
