B43504A9227M000 - TDK

Description: 220 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 400mOhm @ 100Hz 3000 Hrs @ 105°C

Download B43504A9227M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43504A9227M000 - TDK - PCB symbol
click to zoom
PCB Footprints

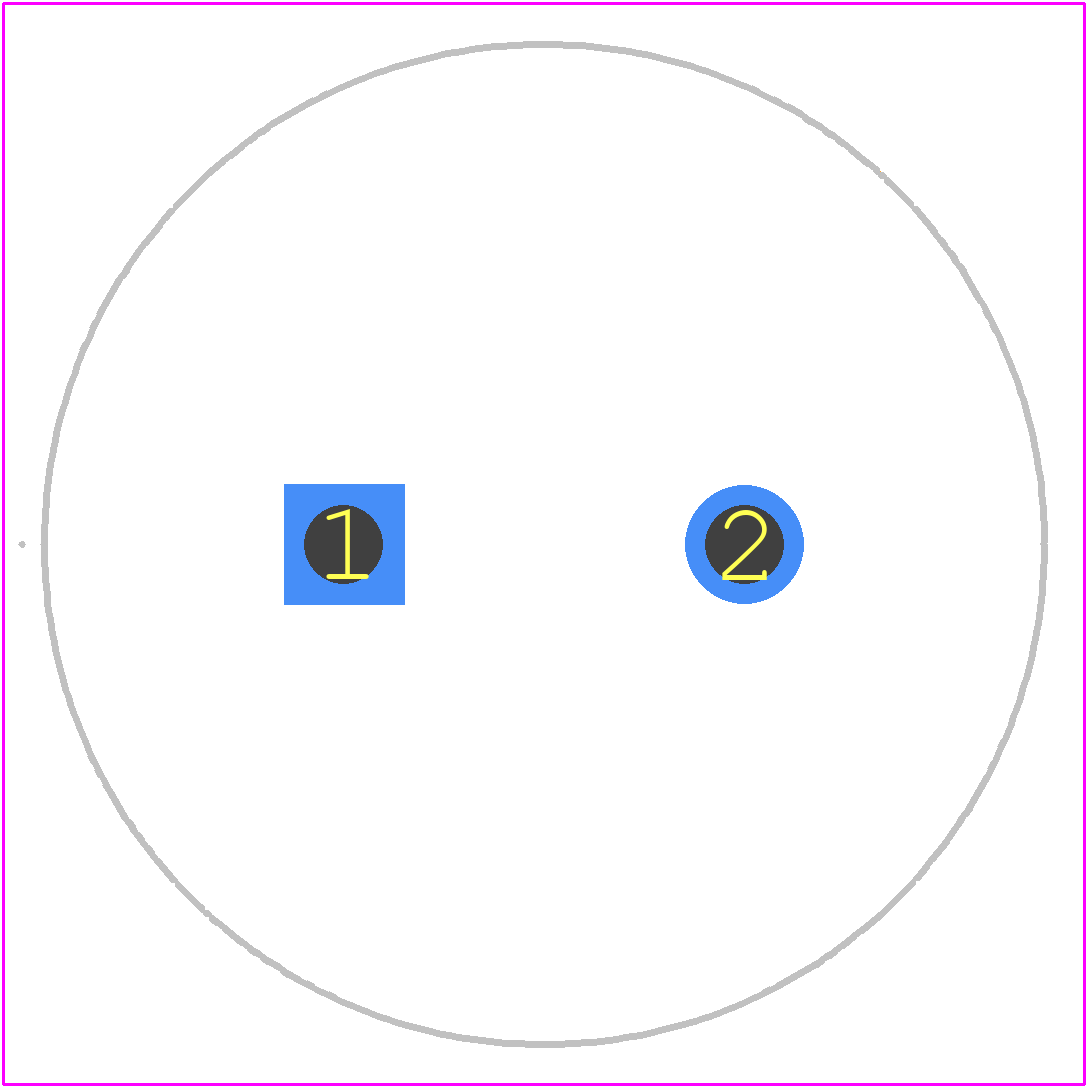

B43504A9227M000 - TDK PCB footprint - Other - Other - 25mm × 45mm
click to zoom
3D Models
B43504A9227M000 - TDK - 3D model - Other - 25mm × 45mm
click to zoom

B43504A9227M000 Details

  • Manufacturer Part Number:

    B43504A9227M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    400 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.87147 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1120 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43504A9227M000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B43504A9227M000 can be found in the TDK Corporation's recommended footprint document, which is usually available on their website or through their technical support team.
  • The B43504A9227M000 is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures, such as storing the component in a dry environment (less than 30% RH) and using a dry pack or desiccant to control humidity during transportation and storage.
  • The maximum reflow temperature for the B43504A9227M000 is typically specified as 260°C, but it's recommended to consult the TDK Corporation's reflow profile guidelines for the specific component to ensure optimal soldering and reliability.
  • The B43504A9227M000 can be mounted on standard FR4 PCB materials. However, for high-frequency applications, it's recommended to use a high-frequency PCB material with a low dielectric constant and low loss tangent to minimize signal degradation and ensure optimal performance.
  • The B43504A9227M000 is designed to withstand standard vibration and mechanical stress conditions. However, for specific applications with extreme vibration or mechanical stress, it's recommended to consult TDK Corporation's mechanical stress testing data and guidelines to ensure the component's reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43504A9227M000 Overview

Use the download button to access the B43504A9227M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4350, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
